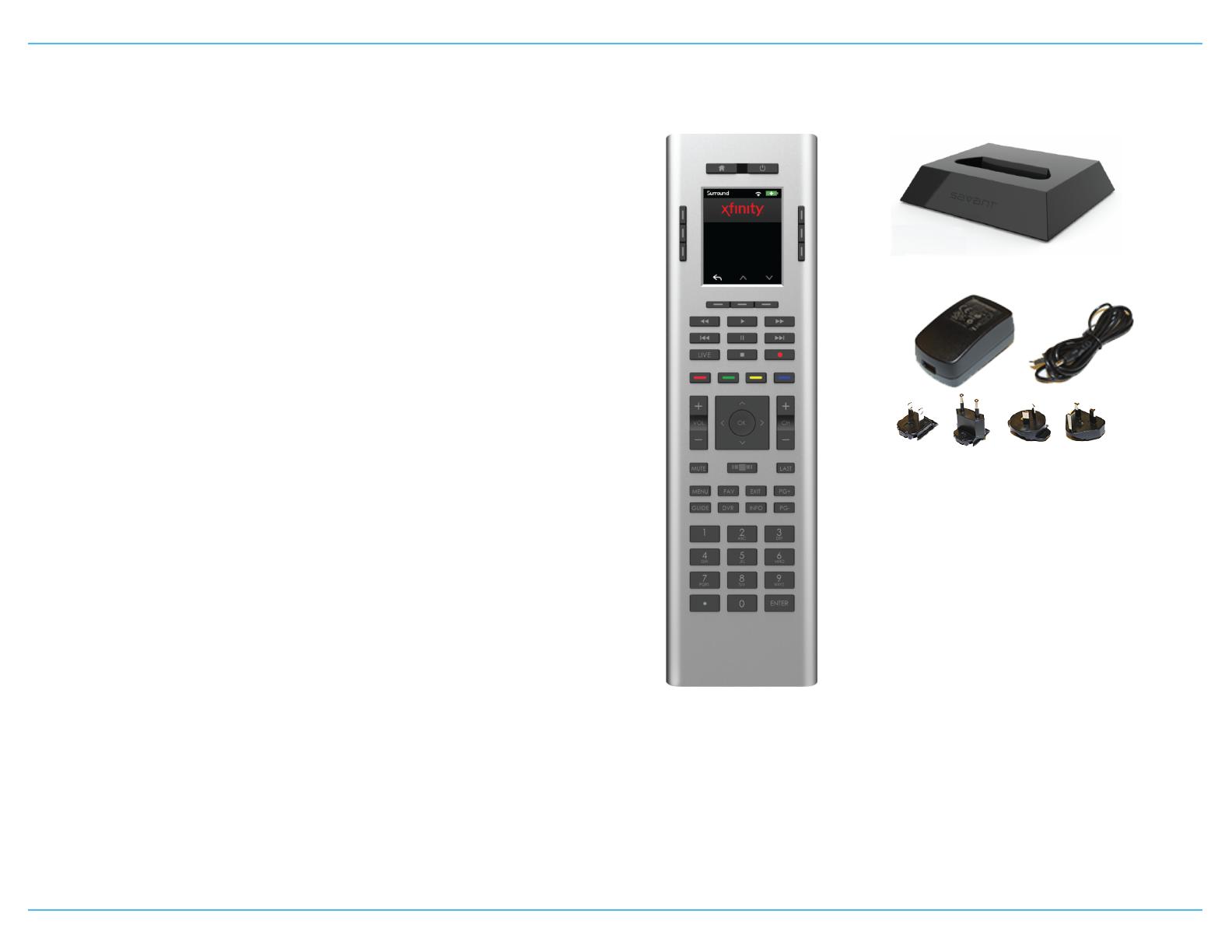

Remote Components
Remote
Charging Base
Power Supply & Cable
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
2
of
20
Savant
®
Universal Remote Overview
Global Remote Operations
Global Remote Operations
Global Remote Operations
1
Home
Press: Returns to the Service List for the current room.
Press and hold: Returns to the currently playing Service.
Press and hold with Power: Turns remote Off
2
Power
Performs power On and Off for the remote and currently
playing services.
3
Item Selection
Performs the operation of the associated list item.
4
Bottom Row
Selection
Performs the operation of the associated Bottom Row
Function.
For more details on the operation of these buttons see Global Function Buttons
For more details on the operation of these buttons see Global Function Buttons
For more details on the operation of these buttons see Global Function Buttons
Screen Items
Screen Items
Screen Items
5
Status Display
Bar
Currently selected room, WiFi signal, Battery Level, and
Charging Indication. See Remote Status Icons for more
details.
6
Item List
Display’s lists of remote functions, and service
information.
7
Bottom Row
Functions
Display the function to perform for the associated Bottom
Row Selection buttons.
Service Control
Service Control
Service Control
8
Service Control
Performs the function on the currently selected service.
Rewind, Play, Fast Forward, Previous, Pause, Next, Live,
Stop, Record
9
Service Menu
Navigation
Performs the function on the currently selected service.
Left, Right, Up, Down, OK (Enter)
10
Volume Control
Volume Up, Down, and Mute
11
Channel
Control
Channel Up, Down, and Last
12
TrueCommand
OSD
Display’s the Savant TrueCommand OSD.
Exit is used to close the OSD.
13
Service
Navigation
Performs the function on the currently selected service.
Menu, Favorites, Exit, PG+, Guide, DVR, Info, PG-
14
Service
Numeric Entry
Performs the function on the currently selected service.
0 - 9, Decimal Point, Enter
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
3
of
20
Operating the SUR
Global Function Buttons
A.Home Button
Press to view the list of available Services.
Press and hold to return to the currently playing AV
Service.
B.Power Button
See Powering Off Services
C.Side Buttons
Press to select the Screen Item next to the button.
D.Bottom Buttons
Press to perform the Screen Action above the button.
Remote Status Icons
A.Current Location
Display’s the name of the room currently controlled by
the remote.
B.Wi-Fi Signal
Display’s the current level of the Wi-Fi signal.
C.Battery Level Indicator
Display’s the charge level for the battery.
More green indicates more charge and a charge
symbol will appear when docked.
Selecting Services
1. Press Home to display the list of available services.
2. Press the Center or Right bottom button until the
desired Service appears on the screen.
3. Press the Left or Right side button next to the desired
service.
Powering Off Services
1. Press the Power button to power off the currently
selected service.
Options to power off other rooms, services, or
components are also available.
See Power Options Menu for details.
Power Options Menu
1. Press and hold the Power button until the options
menu appears.
2. Press the Center or Right bottom button until the
desired option appears on the screen.
3. Press the Left or Right side button next to the desired
option.
Available Options
• Power Off Rooms: Powers Off the Current Room
• Power Off Everything: Powers Off all Rooms in the
system
• Active Rooms: List of Active Rooms in the system to
power Off
• Active Services: List of Active Services in Current Zone
to power Off
• Component Power: Power toggle for the currently used
component
• Sleep Timer: See Room Power Delay (Sleep)
Room Power Delay (Sleep)
1. Press the lower Left or Right side button to adjust the
sleep time.
2. Press the Right bottom button to set the sleep time.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
4
of
20
Savant TrueCommand
Note: This feature requires programming by the dealer and may not be
available on all Savant systems.
1. Press the TrueCommand button under the navigation
pad.
2. Use the Navigation pad Left and Right buttons to
navigate the TrueCommand OSD.
3. Press OK to select the desired action.
4. Press Exit to close the TrueCommand OSD.
Video Settings
The Video Settings menu allows the user to change the following settings
related to Video.
Note: The Video Settings menu only appears if the selected zone has access
to a video source.
1. Press the Left bottom button until the Main (Root)
screen appears.
2. Press the Center or Right bottom button until
Settings appears on the screen.
3. Press the Left or Right side button next to Settings in
the list of options.
4. Press the Center or Right bottom button until Video
Settings appears on the screen.
5. Press the Left or Right side button next to Video
Settings in the list of options.
Format Info
A. Current Input Format
B. Current Output Format
C.Return to Video Settings menu
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
5
of
20
Picture Adjustments
Within the Video Settings menu there are sub menus
to set the following picture settings. They control
different settings but these menus have the same
layout.
• Contrast
• Brightness
• Hue
• Saturation
• Detail
• Noise
A. Current Value for the selected setting.
B. Use the center Left or Right side buttons to adjust the
value in item A Up (+) or Down (-).
C.Use the lower Left or Right side buttons to set the
value in item A to default (0).
A. Aspect Ratio
B. Use the Center or Right bottom button to scroll
through the list of available Aspect Ratios.
C.Use the center Left or Right side button next to the
desired aspect ratio.
Note: Aspect ratios in the list may not be available on
the currently selected display.
Stereo Settings
The Stereo Settings menu allows the user to change the following settings
related to Audio.
Note: The Stereo Settings menu only appears if the selected zone has
access to an audio source.
Accessing the Audio Settings Menu
1. Press the Left bottom button until the Main (Root)
screen appears.
2. Press the Center or Right bottom button until
Settings appears on the screen.
3. Press the Left or Right side button next to Settings in
the list of options.
4. Press the Center or Right bottom button until Stereo
Settings appears on the screen.
5. Press the Left or Right side button next to Stereo
Settings in the list of options.
Adjusting Stereo Settings
A. Use the Center or Right bottom button to scroll
through the list of available settings.
B. Use the Left or Right side buttons to adjust the
setting.
C.Current Value for the selected setting.
D.Use the center Left or Right side buttons to adjust the
value in item C Up (+) or Down (-).
E. Use the lower Left or Right side buttons to set the
value in item C to default (0).
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
6
of
20
Controlling Savant Services
AV Service Control
C
Item Selection
Selects the item on the screen next to the associated
button. List view only (favorites, playlists, etc...)
D
E
F
Bottom Row Function
Performs the operation indicated on the bottom row of the
screen. Operation will vary from service to service and on
list views.
G
Playback Controls
(Rewind, Play, Fast Forward, Previous, Pause, Next, and Stop)
Controls the playback of Recorded TV, Live TV (DVRs Only),
Local, and Streamed Content.
H
Live
Skips forward ## seconds when watching live TV on a DVR.
I
Record
Starts and Stops recording of Live TV when watching a
DVR.
J
Cable Box Functions
Cable TV Provider Functions
K
Audio Volume Control
(VOL +, VOL-, and Mute)
Controls the volume of the current service through the
preconfigured component.
L
Service OSD Navigation
(Up, Down, Left, Right, and OK)
Controls the direction of movement of the TrueCommand
OSD or the OSD of the currently selected service.
M
Channel Control
(CH+, CH-, and Last)
Controls the channels of TV tuners (Cable, Satellite, Off Air
TV)
N
TrueCommand OSDl
Toggles the Savant TrueCommand OSD On or Off
O
Menu
Opens the Menu of the component controlled during the
current service.
P
Favorites (FAV)
Display’s the Favorite list for a cable box.
Q
Exit
Exits the OSD or Menu for the currently selected service.
R
PG + and PG-
Jumps to the next or previous page of the OSD for the
currently selected service.
S
Guide
Display’s the Guide for the currently selected service.
T
DVR
Accesses the recorded content menu for a cable service.
U
Info
Display’s an information screen for the currently playing
service.
V
Numeric Buttons
Performs numeric entry such as channel selection for the
currently playing service.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
7
of
20
HVAC Control
Viewing Current Temperature
1. Press the Left or Right side button next to Climate in
the list of services.
2. Press the Left or Right side button next to Indoor
Temp in the list of options.
A. Current Outdoor Temp
B. Current Indoor Temp.
C.Current Indoor Humidity Level
D.Back-Returns to previous screen.
E. Next-Displays climate settings.
A. Heat and AC temp setting
B. Humidity setting
C.Fan mode setting: On, Off, Auto
D.Climate Control mode setting: Heat, Cool, Auto
E. Stage Setting
F. Humidity Control: On or Off
Setting Temperature Values
1. Press the Left or Right side button next to Climate in
the list of Services.
2. Press the Left or Right side button next to Set Temp
in the list of options.
3. Press the Left side button to lower and Right side
button to raise the value for Heat, Cool, or Humidity.
4. Press the Left bottom button to return to the previous
screen.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
8
of
20
Set Fan Mode
1. Press the Left or Right side button next to Climate in
the list of Services.
2. Press the Left or Right side button next to Modes in
the list of options.
3. Press the Left or Right side button next to Fan in the
list of options.
4. Press the Left or Right side button next to the desired
mode.
5. Press the Left bottom button to return to the previous
screen.
Set HVAC Mode
1. Press the Left or Right side button next to Climate in
the list of Services.
2. Press the Left or Right side button next to Modes in
the list of options.
3. Press the Left or Right side button next to HVAC
Modes in the list of options.
4. Press the Center or Right bottom button to display all
options.
5. Press the Left or Right side button next to the desired
mode.
Auto, Heat, Cool, or Off
6. Press the Left bottom button to return to the previous
screen.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
9
of
20
Switching Between HVAC Zones
1. Press the Left or Right side button next to Climate in
the list of Services.
2. Press the Center or Right bottom button to display all
options.
3. Press the Left or Right side button next to Other
Zones in the list of options.
4. Press the Center or Right bottom button to display all
available zones.
5. Press the Left or Right side button next to the desired
zone.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
10
of
20
Shade Control
Raising and Lowering Shades
1. Press the Left or Right side button next to Shades in
the list of Services.
2. Press the Left or Right side button next to Levels in
the list of options.
3. Press the upper Left side button to Close and the
upper Right side button to Open the shade.
4. Press the Left bottom button to return to the previous
screen.
Running Shading Scenes
1. Press the Left or Right side button next to Shades in
the list of Services.
2. Press the Left or Right side button next to Scenes in
the list of options.
3. Press the Left or Right side button next to the desired
scene.
4. Press the Left bottom button to return to the previous
screen.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
11
of
20
Switching Between Shade Control Rooms
1. Press the Left or Right side button next to Shades in
the list of Services.
2. Press the Center or Right bottom button to display all
options.
3. Press the Left or Right side button next to Other
Rooms in the list of options.
4. Press the Center or Right bottom button to display all
available rooms.
5. Press the Left or Right side button next to the desired
room.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
12
of
20
Lighting Control
Turning Lights On and Off
1. Press the Left or Right side button next to Lighting in
the list of Services.
2. Press the Center or Right bottom button to display all
available zones.
3. Press the Left or Right side button next to the Zone to
control in the list of available zones.
4. Press the Left or Right side button next to Lights in
the list.
5. Press the Center or Right bottom button to display all
available lights.
6. Press the Left side button to Dim and the Right side
button to brighten the light.
7. Press the Left bottom button to return to the previous
screen.
Running Lighting Scenes
1. Press the Left or Right side button next to Lighting in
the list of Services.
2. Press the Center or Right bottom button to display all
available zones.
3. Press the Left or Right side button next to the Zone to
control in the list of available zones.
4. Press the Left or Right side button next to Scenes in
the list.
5. Press the Center or Right bottom button to display all
available scenes.
6. Press the Left or Right side button next to the desired
scene.
7. Press the Left bottom button to return to the previous
screen.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
13
of
20
CCTV Control
A. Zoom Out
B. Zoom In
C.Dimmer
D.Brighter
Pool and Spa Control
Viewing Pool Temperature
1. Press the Left or Right side button next to Pool and
Spa Controller appears in the list of services.
2. Press the Left or Right side button next to Pool Temp
in the list of options.
Pool Temperature Current Values
A. Current Outside Temperature
B. Current Pool Temperature
C.Current Spa Temperature
D.Falls State (On or Off)
E. Spa State (On or Off)
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
14
of
20
Setting Pool Temperature
1. Press the Left or Right side button next to Climate in
the list of Services.
2. Press the Left or Right side button next to Set Temp
in the list of options.
3. Press the Left side Button to lower and Right side
button to raise the value for Heat, Cool, or Humidity.
4. Press the Left Bottom button to return to the previous
screen.
Additional Pool and Spa Controls
The Pool and Spa service allows for controlling features not listed above.
The screen to control these additional items function in the same manner.
• Modes - Spa Mode and Falls Mode
• Pumps and Heaters - Adjust pump mode and controller heaters for the
pool and spa.
• Auxiliary - Access Aux buttons for direct control of Pool and Spa functions.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
15
of
20
Modifying Remote Configuration
Switching IP Networks
1. Press the Left bottom button until the Main (Root)
screen appears.
2. Press the Center or Right bottom button until
Settings appears on the screen.
3. Press the Left or Right side button next to Settings in
the list of options.
4. Press the Center or Right bottom button until Wi-Fi
appears on the screen.
5. Press the Left or Right side button next to Wi-Fi in the
list of options.
6. Press the Center or Right bottom button to view the
available Wi-Fi networks. If the network name does
not appear in the list, select Other Network at the
bottom of the list.
7. Press the Left or Right side button next to the desired
Network in the list of options.
Note: If the network is not protected by a password,
connection will take place after selecting the name. In
this case, the next step will not be required.
8. See Entering Network Password for the steps to enter
a network password.
Entering Network Password
1. Press the lower Left or Right side buttons until the
desired character appears above the center pointer.
2. Press the upper Left side button to capitalize the
character if needed.
3. Press the Center bottom button to save the character
and move to the next blank.
4. If a character was saved in error:
Press the Center side buttons to move the cursor after
the character.
Press the upper Right side button to delete the
character.
5. Press the Right bottom button to save the password.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
16
of
20
Selecting a Savant Host
1. Press the Left bottom button until the Main (Root)
screen appears.
2. Press the Center or Right bottom button until
Settings appears on the screen.
3. Press the Left or Right side button next to Settings in
the list of options.
4. Press the Center or Right bottom button until Location
appears on the screen.
5. Press the Left or Right side button next to Location
in the list of options.
6. Press the Center or Right bottom button until Other
Systems appears on the screen.
7. Press the Left or Right side button next to Other
Systems in the list of options.
8. Use the Center or Right bottom button to view the
available systems.
9. Press the Left or Right side button next to the desired
Host in the list of options.
Remote Screen Time Out (Sleep Timer)
1. Press the Left bottom button until the Main (Root)
screen appears.
2. Press the Center or Right bottom button until
Settings appears on the screen.
3. Press the Left or Right side button next to Settings in
the list of options.
4. Press the Center or Right bottom button until Sleep
appears on the screen.
5. Press the Left or Right side button next to Sleep in
the list of options.
6. Use the Left or Right side buttons to increase or
decrease the sleep time.
7. Press the Left bottom button to return to the previous
screen.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
17
of
20
Updating Remote Firmware
IMPORTANT! Before performing the update steps, place
the remote in the dock to ensure that the remote will not
shut down during the update process.
1. Press the Left bottom button until the Main (Root)
screen appears.
2. Press the Center or Right bottom button until
Settings appears on the screen.
3. Press the Left or Right side button next to Settings in
the list of options.
4. Press the Center or Right bottom button until
Updates appears on the screen.
5. Press the Left or Right side button next to Updates in
the list of options.
6. If an update is available, the update type will be shown
on the screen. Select Update to download and install.
NOTE! The remote will reboot after the update is installed
and will be inactive for several minutes before the start
screen animation appears.
IMPORTANT! After the update has finished the remote
may be inoperative (blank screen). This is normal and is
remedied by rebooting the remote.
See Rebooting the Remote for details.
7. Several updates may be available. Repeat steps 1 to
6 until the No Updates Were Found At This Time
message appears.
Press the Left bottom button to return to the previous
screen.
Resetting the Remote
1. Press the Left bottom button until the Main (Root)
screen appears.
2. Press the Center or Right bottom button until
Settings appears on the screen.
3. Press the Left or Right side button next to Settings in
the list of options.
4. Press the Center or Right bottom button until Reset
appears on the screen.
5. Press the Left or Right side button next to Reset in
the list of options.
6. Press the Left or Right side button next to the remote
item to reset.
Wi-FI!:! ! ! Resets Wi-FI Configuration
Configuration:! Resets the remotes configuration
Remote:!! ! Resets remote to Factory defaults
Note: Selecting Remote will also reset Wi-Fi and
Configuration.
7. Press the Right bottom button to complete the reset
process.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
18
of
20
Maintenance Operations
Rebooting the Remote
1. Press and hold the Home and Power button for 10
seconds.
2. After the remote powers Off, place the remote on
the dock to power On the remote.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
19
of
20
Regulatory
The following statements are applicable to the SUR-0500.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However there is no guarantee that interference
will not occur in a particular installation, If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try correct the interference by one or more of the following measures: 1.1. Reorient or relocate the receiving circuit different from that to which receiver
is connected. 1.4. Consult the dealer or experienced radio/TV technician for help. The changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
"CAUTION" : Exposure to Radio Frequency Radiation. Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The
antenna should not be contacted during operation to avoid the possibility of exceeding the FCC radio frequency exposure limit.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre
le fonctionnement.
Copyright © 2015 Savant Systems, LLC. SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.
Savant
®
Universal Remote User’s Guide
009-1086-02
150925
20
of
20
-
1
-
2
-
3
-
4
-
5
-
6
-
7
-
8
-
9
-
10
-
11
-
12
-
13
-
14
-
15
-
16
-
17
-
18
-
19
-
20
Ask a question and I''ll find the answer in the document
Finding information in a document is now easier with AI
Related papers
-
Savant REM-0300RF-00 Reference guide
-
-
-
Savant Pro App User guide
-
-
-
-
-
-
Savant SSC-0014-00 Deployment Guide
