LT-6140 Rev 0
September 2016
1
RPL-MD-1233
15” Touch Screen Installation
Instructions
Instructions for TX3-TOUCH-S15-A and TX3-TOUCH-F15-A
1. Disconnect power from the Touch Screen.
2. If the circuit board shown below is present, then disconnect any wires connected to it, and remove the warning
panel and the circuit board.

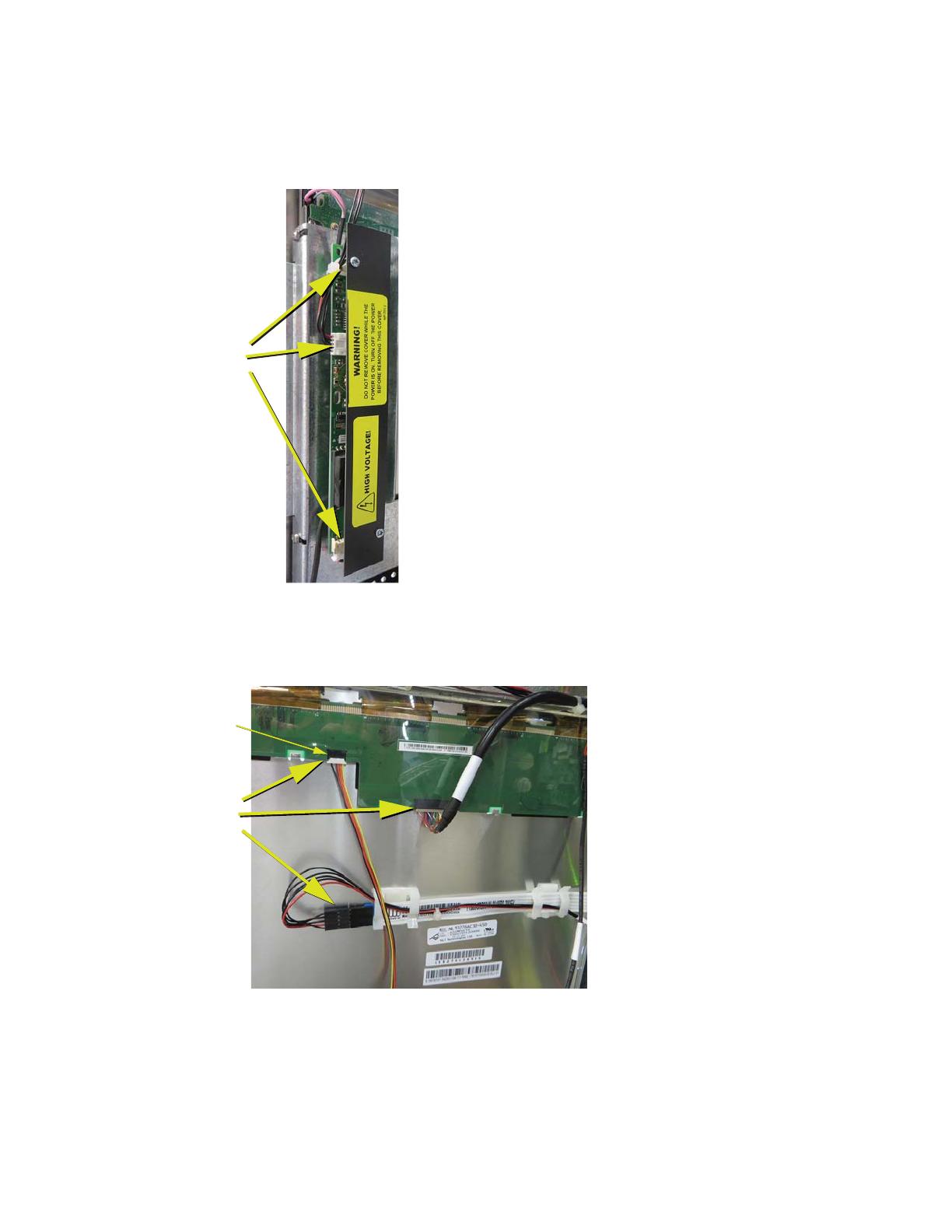

Figure 1. Disconnect and remove the circuit board if it is present
3. Disconnect the wires connected to the display.
NOTE: Depending on the model, one of the wires might not be present, as shown below.
Figure 2. Disconnect the wires from the old display
Disconnect
Disconnect
This wire might
not be present
LT-6140 Rev 0
September 2016
2
4. Unscrew the four screws holding the display to the brackets, and remove the display from the front.
Figure 3. Unscrew the brackets from the display
5. Use the 4 included screws to attach the included brackets to the new display.
NOTE: Use only the included screws to attach the brackets to the display. Using different screws might damage
the display.
Figure 4. Attach the new display to the included brackets
6. Make sure that the cable goes through the hole in the right bracket.
Figure 5. Make sure cable goes through hole
Screws
Screws
Front of display
Back of display
New bracket
and screws
New bracket
and screws
Make sure cable
goes through hole
LT-6140 Rev 0
September 2016
3
7. Place the new display in the chassis from the front and attach the display with the 4 screws you removed in
step 4.
Figure 6. Install new display
8. Connect the cables to the new display as shown below.
Figure 7. Connect cables to new display
To CN27 on PC
sub compact
board
Included cable: to
CN26 on PC sub
compact board
To CN20 on PC sub
compact board
LT-6140 Rev 0
September 2016
4
9. Disconnect the cable from CN26 on the PC sub compact board and connect the included cable in its place.
Figure 8. Connect included cable to PC sub compact board
CN26
CN27
CN20
Disconnect the
existing cable
and connect the
new cable here
LT-6140 Rev 0
September 2016
5
Instructions for TX3-TOUCH-S15-B and TX3-TOUCH-F15-B
1. Disconnect power from the Touch Screen.
2. If the circuit board shown below is present, then disconnect any wires connected to it, and remove the warning
panel and the circuit board.
Figure 9. Disconnect and remove the circuit board if it is present
3. Disconnect the wires connected to the display.
NOTE: Depending on the model, one of the wires might not be present, as shown below.
Figure 10. Disconnect the wires from the old display
NOTE: Depending on the model, the unit has one bracket or two brackets holding the display.
4. Unscrew the four screws holding the display to the bracket or brackets, and remove the display from the back.
See Figures 11 and 12 on the next page.
Disconnect
Disconnect
This wire might
not be present
LT-6140 Rev 0
September 2016
6
5. Use the same 4 screws to attach the bracket or brackets to the new display.
NOTE: Use only these screws to attach the brackets to the display. Using different screws might damage the
display.
Figure 11. One bracket model
Figure 12. Two bracket model
6. Place the new display in the door from the back and attach the display with the 4 screws you removed in step 4.
Figure 13. Install the display in the door
Screws
Screws
Screws
Back of display
One bracket model
Two bracket model
LT-6140 Rev 0
September 2016
7
7. Connect the cables to the new display as shown below.
Figure 14. Connect cables to the new display
To CN27 on PC
sub compact
board
Included cable: to
CN26 on PC sub
compact board
To CN20 on PC sub
compact board
LT-6140 Rev 0
September 2016
8
8. Disconnect the cable from CN26 on the PC sub compact board and connect the included cable in its place.
Figure 15. Connect included cable to PC sub compact board
CN26
CN27
CN20
Disconnect the
existing cable
and connect the
new cable here
