I-7532 CAN Bridge QuickStart(ver. 1.0, 2008/08/25) ------1

Quick Start User Guide

This user guide describes how to implement the I-7532 module

into users’ applications in a quick and easy way. Therefore, it only

provides the basic concepts. If users want to know more detail

information about the I-7532, please refer to the user manual in the

product CD or visit our website as follow:

http://www.icpdas.com/products/Remote_IO/can_bus/i-7532.htm

1. Introduction................................................................................................2

2. LED Status..................................................................................................3

3. Wire Connection ........................................................................................4

4. Terminator Resistor Setting......................................................................5

The

753

CAN

Bridge

I-7532 CAN Bridge QuickStart(ver. 1.0, 2008/08/25) ------2

1. Introduction

I-7532 is a local CAN bridge used to establish a connection

between two CAN bus system in a CAN network. The I-7532

stands by itself connecting adjacent wiring segments together as in

the case of a CAN repeater (I-7531). Not just like a CAN repeater,

I-7532 has more powerful features (Extend Network Distance and

Connect two networks with different baud rate).

I-7532 CAN Bridge QuickStart(ver. 1.0, 2008/08/25) ------3

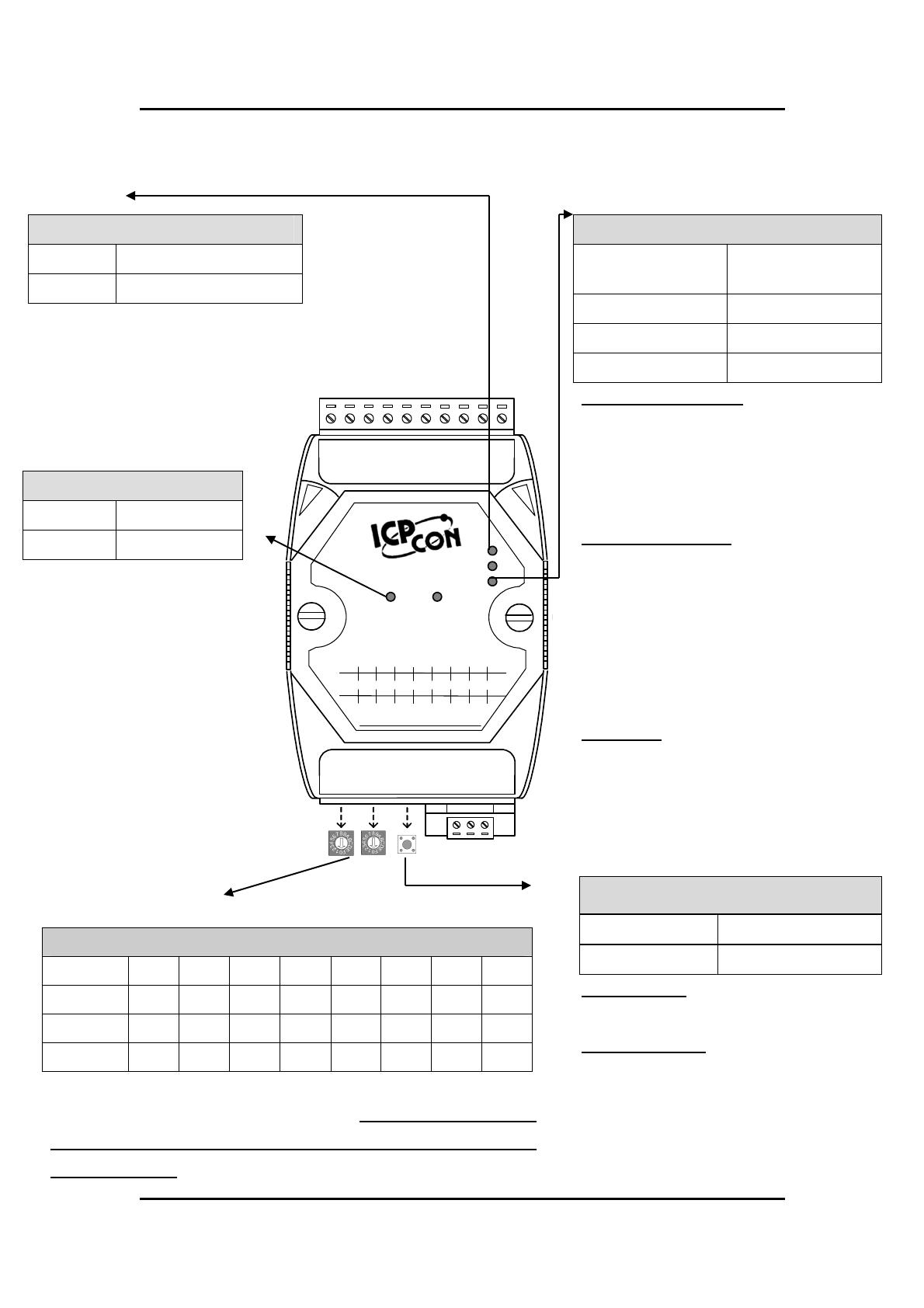

2. LED Status

1.PWR

PWR LED (Red Light)

Power On

OFF

Power off

When the I-7532 is active, the PWR

LED will turn on with red light.

3.CH1 RX, CH2 RX

Rx LED(Green Light)

Flashing

Transmission

OFF

Bus Idle

If there are messages passed

through I-7532 from channel 1 to

channel 2, the CH1 Rx LED will

flash once with green light, and

vice versa.

2.CH1 ERR , CH2 ERR

ERR LED(Red Light)

Flashing

(100ms)

Transmission Fail

Flashing (1sec)

Buffer overflow

Bus Off

OFF

No Error

(1).Transmission Fail： If the message

transmission fails on channel(X), the

CH(X) ERR LED will flash continuously,

and the flashing interval is about 100

millisecond.

(2).Buffer overflow ： If Tx buffer on

channel (X) had been overflow, the CH(X)

ERR LED would flash continuously, and

the flashing interval is about 1 second. No

matter the status is already fixed or not,

after users click the RST button, the LED

will be off.

(3).Bus Off：If the CAN bus connected to

channel (X) of I-7532 is bus off, the CH(X)

ERR LED will be ON until corrected.

5.RST & Err Clear

Reset & Error Clear Button

Click Clear Error LED

Press 3 sec Module Reset

(1).Error Clear：Users can click this button to

clear the ERR LED status.

(2).Module Reset：If users want to restart the

I-7532, press this button until 3 sec and all of

LED on I-7532 will flash once about 0.8 sec.

4.CH1 Baud, CH2 Baud

Baud Switch

switch 0 1 2 3 4 5 6 7

Baud[bps]

N/A 5k 10k 20k 40k 50k 80k 100k

switch 8 9 A B C D E F

Baud[bps]

125k

200k

250k

400k

500k

600k

800k

Users can use the “Baud Switch” to change the CAN1 and CAN2 baud.

There are 15 kinds of baud can be chosen. After changing the switch

value, users must reset Module to take the setting effect (press RST

button until 3 sec).

i-7532

FG3

(R)VS+

(B)GND

CAN_GND

CAN_L

FG2

CAN_H

CAN_GND

CAN_L

FG1

CAN_H

CAN CH 2CAN CH 1

CH1 Baud

CH2 Baud

RST &

Err Clear

CAN Bus Bridge

‧Support CAN 2.0A/2.0B

‧Selectable 120O terminator resistor

‧Rotary switch value & Baud :

CH1 Rx

CH1 ERR

CH2 ERR

PWR

CH2 Rx

3KV VDC Isolation on each CAN side

5K 10K 20K 40K 50K 80K 100K 125K

1 2 3 4 5 6 7 8

9 A B C D E F

200K 250K 400K 500K 600K 800K 1M

RSW

Baud

RSW

Baud

I-7532 CAN Bridge QuickStart(ver. 1.0, 2008/08/25) ------4

3. Wire Connection

Earth Ground

CAN_L

CAN_GND

CAN_H

CAN_L

CAN_GND

Earth Ground

Power Ground

+10V

~ +30V

Earth Ground

CAN_GND

CAN_L

FG2

CAN_H

CAN_GND

CAN_L

FG1

CAN_H

CAN CH 2CAN CH 1

FG3

(R)VS+

(B)GND

CAN_H

CAN CH 1

CAN CH2

POWER

Part Name Description

CAN_GND CAN_Ground, ground voltage level of CAN channel 1.

CAN_L CAN_Low, signal line of CAN channel 1.

FG1 Frame Ground of CAN channel 1.

CAN CH 1

CAN_H CAN_High, signal line of CAN channel 1.

CAN_GND CAN_Ground, ground voltage level of CAN channel 2.

CAN_L CAN_Low, signal line of CAN channel 2.

FG2 Frame Ground of CAN channel 2.

CAN CH 2

CAN_H CAN_High, signal line of CAN channel 2.

(R)VS+ Voltage Source. It could be +10V

~ +30V

(B)GND Power Ground.

Power

FG3 Frame Ground of Power.

I-7532 CAN Bridge QuickStart(ver. 1.0, 2008/08/25) ------5

4. Terminator Resistor Setting

The I-7532 module includes two build-in 120Ω terminal resistors, users

can decide to enable those two terminator resistors or not.

The JP4 of I-7532 is used to adjust terminal resistor on CAN Channel 1,

and the JP3 of I-7532 is used to adjust terminal resistor on CAN Channel 2.

Before adjusting JP3 or JP4 of I-7532, users need to open the cover of

I-7532 first. Those locations of JP3 and JP4 are shown as follows:

The following connection statuses present the condition if the terminal

resistor is enabled (default) or disabled.

Disable

(Deactivate)

Enable

(Activate)

JP4

JP3
