How to attach your SpiderPro Pad to a SpiderPro Belt
Updated 1/17/2017
Downloaded from
www.spiderholster.com
Page 1
SpiderPro Belt Sizing
SpiderPro Parts
SpiderPro Belt
Standard Clip
3/32" Hex
Wrench
SpiderPro Pad
and Holster
Adjust the SpiderPro Belt to your size - make sure that the Belt rides on your hips.
Position the SpiderPro Pad and Holster on your left hip and mark the location on the belt.
IMPORTANT - please make sure the position on the SpiderPro Belt is correct and to your liking!
If the Pad sits on the padded section of
the belt - Continue to Page 2
If the Pad sits on the SpiderPro
Belt webbing - Skip to Page 6
Velcro
Strip
Make sure again that the insert is in
itʼs place before inserting the Tension
Spring.
Tension Spring
Align the Tension Springʼs holes with
the two holes at the Spiderʼs bottom.
Page 2
Start by detaching your original Spider clip and
tension spring using the provided 3/32” Hex
wrench.
PLEASE NOTE: you may have received your
adapter clip already installed. If so, skip the
step mentioned above.

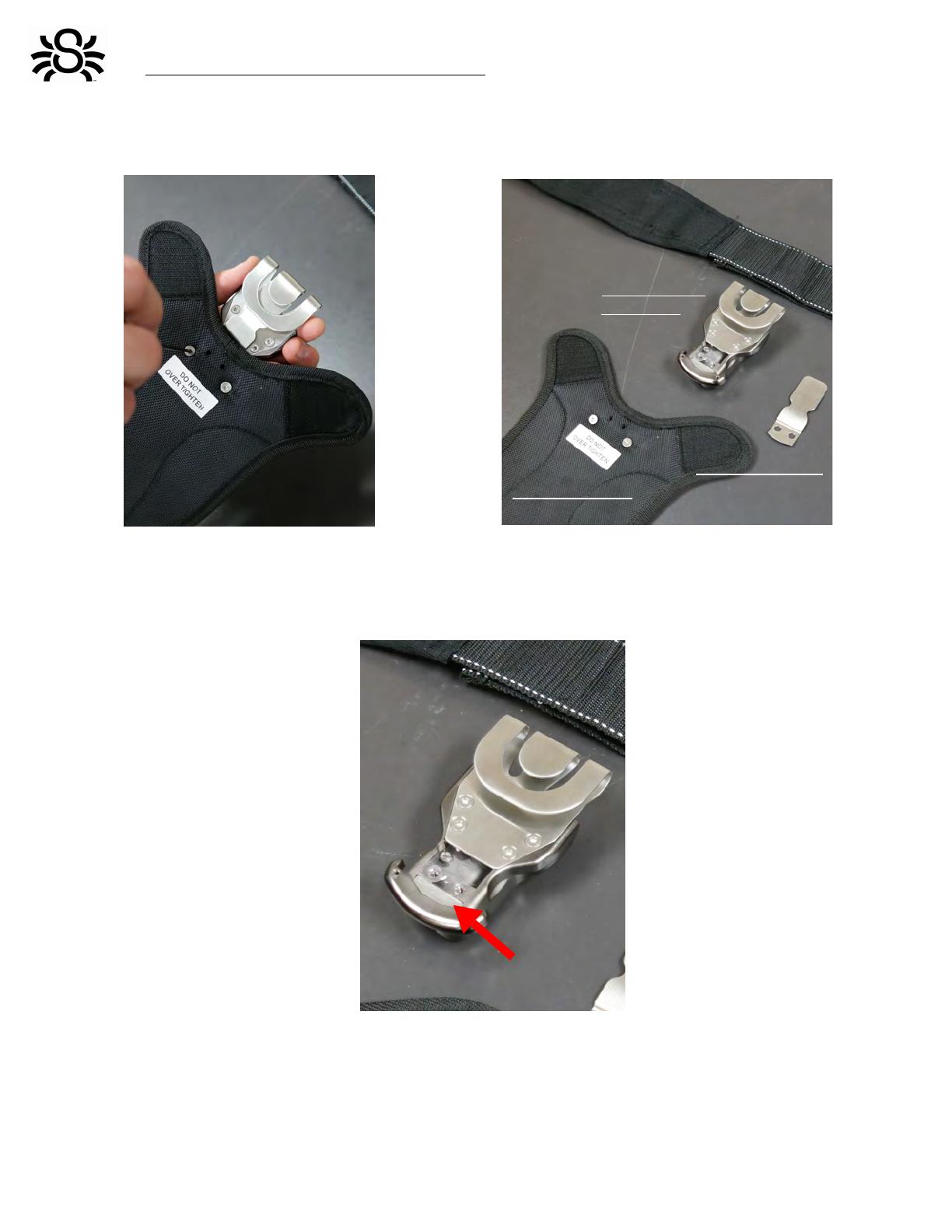

Installation - Padded Section
To use the SpiderPro Pad on the padded section of the SpiderPro Belt:
Remove the SpiderPro Pad and Tension Spring as shown.
Be careful not to lose the Stainless Steel Insert from the SpiderPro Holster
Holster with
Long Clip
Tension Spring
SpiderPro Pad
Continue to Page 4 - Installation on the SpiderPro Belt
Holster Insert
Page 3
Installation - Padded Section continued...
1. Place the holster at the marked
location on the Belt
2. Separate and open the Belt
Velcro at the Holster location
3. Insert the Tension Spring
between the layers of the
Belt velcro
4. Make sure the Holster Insert is
in place before installing the two
screws in the Tension Spring
Page 4
Installation - Padded Section continued...
5. Align the holes on the Pad with
those on the Holster
6. Install the Pad screws as shown
DO NOT OVERTIGHTEN these screws
7. 7. Separate the Belt velcro (A), insert the Pad "ear" (B)
and secure the velcro webbing in place (C)
A
B
C
Page 5
Installation - Padded Section continued...
8. Flip the SpiderPro Belt over
9. Open the Belt webbing as shown and
insert the second Pad "ear"
10. Securely fasten the Belt webbing
Congratulations, you're done!
Don't forget - you can easily adjust the Belt size using our quick adjustment buckle
Page 6
Installation - Webbing
To use the SpiderPro Pad on the belt webbing - replace the Long Clip with the Standard Clip
as shown:
Holster Insert
Remove the SpiderPro Pad, Tension Spring and the Long Clip.
Be careful not to lose the Stainless Steel Insert from the Holster.
Holster with
Long Clip
Tension Spring
Standard Clip
SpiderPro Pad
Install the Standard Clip onto the Holster with 4 screws
Page 7
Installation - Webbing continued...
1. Place the holster at the marked
location on the Belt
2. Separate and open the Belt
Velcro at the Holster location
3. Insert the Tension Spring between
the layers of the Belt velcro
4. Make sure the Holster Insert is in
place before installing the two
screws in the Tension Spring
Page 8
Installation - Webbing continued...
52SHQWKH6SLGHU3UR%HOWYHOFUR
DVVKRZQDQGLQVHUWWKH3DGHDUV
6. IQVHUWWKH3DGEHWZHHQWKHZHEELQJ
OD\HUVDQGLQWRWKH6WDQGDUG&OLS
7KLVPD\WDNHVRPHIRUFH
7. Align the screw holes in the Pad
with the Pro Holster
8. Install both Pad screws as shown
DO NOT OVERTIGHTEN these screws
Page 9
Installation - Webbing continued...
9. Secure the velcro webbing over the "ears" of the Pad
10. Flip the Belt over to check that the webbing is in
place and secure it with the elastic loop (red arrow)
Don't forget - you can easily adjust the Belt size using our quick adjustment buckle
Page 10
Special Case: Larger Belt Sizes
1. If the SpiderPro Belt webbing does not cover both "ears" of the SpiderPro Pad...
2. Attach the included velcro strip to the "ear" of the Pad
3. Tightly wrap the velcro strip around the Pad and Belt
to secure the Pad and Holster in place.
