Getting Started2
Getting Started
1
1 Getting Started

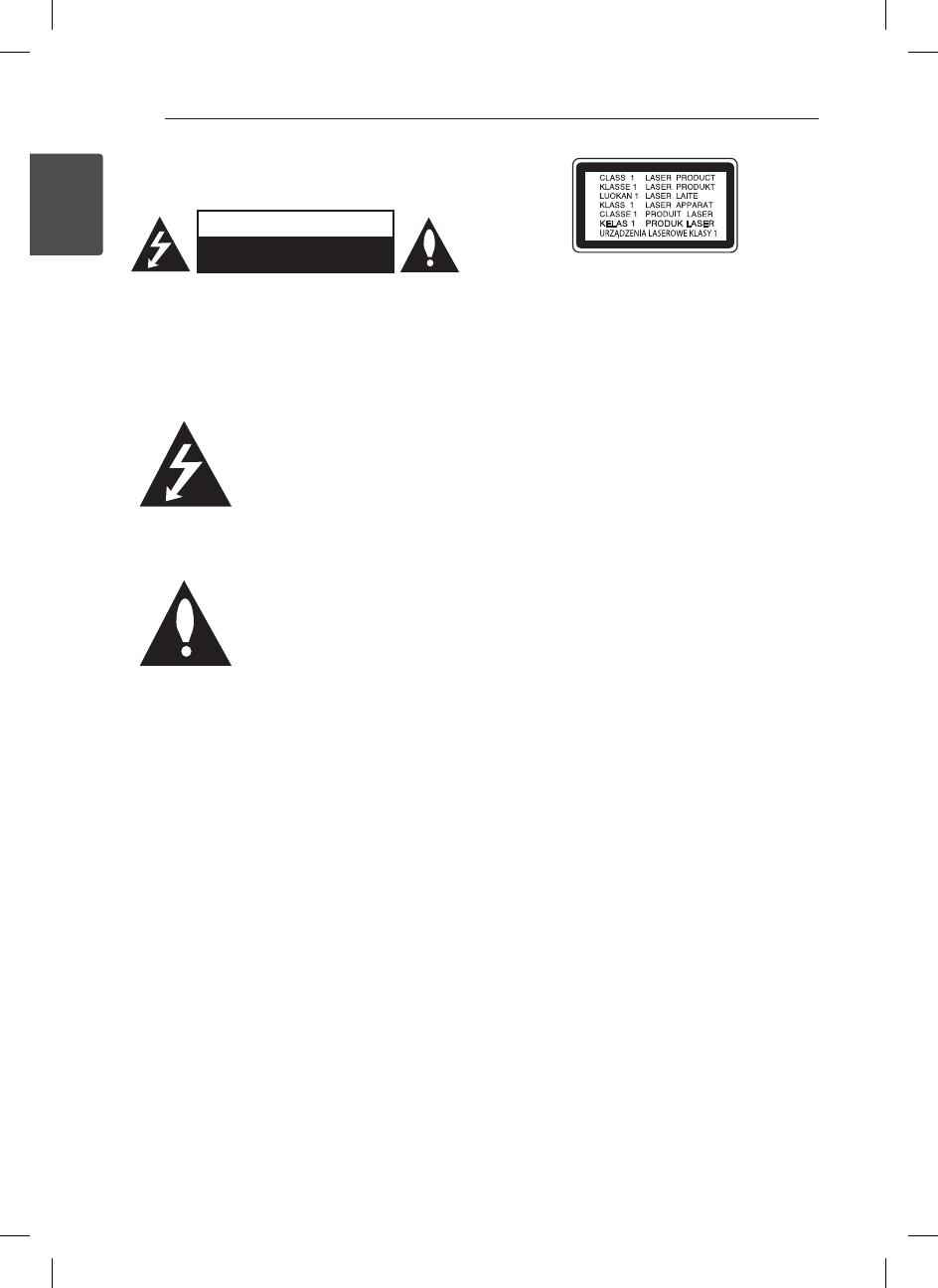

Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with
arrowhead symbol within an
equilateral triangle is intended to
alert the user to the presence of
uninsulated dangerous voltage
within the product’s enclosure
that may be of sucient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not use high voltage products
around this product. (ex. Electrical swatter) This
product may malfunction due to electrical shock.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturers
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturers
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owners manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owners manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. The
Power Plug is the disconnecting device. In case of
an emergency, the Power Plug must remain readily
accessible.
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 2 2015-05-21  9:29:20
Getting Started 3
Getting Started
1
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, re or the like.
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 3 2015-05-21  9:29:20
Table of Contents4
Table of Contents
1 Getting Started
2 Safety Information
6 Unique Features
6 Accessories
7 Introduction
7 Playable Discs
7 About the “7” Symbol Display
7 Symbols Used in this Manual
7 Regional Codes
8 Playable file Requirement
8 Music file requirement
8 Photo file requirement
8 Video file requirement
9 Remote control
10 Top panel
11 Front panel
12 Rear panel
2 Connecting
13 Use of Tripod
15 Connecting the Power cord
15 Connections to Your TV
15 HDMI Out Connection
17 Resolution Setting
17 Optional Equipment Connection
17 AUX IN Connection
18 AUX OUT Connection
18 PORT. IN Connection
19 USB Connection
20 Antenna Connection
3 System Setting
21 Adjust the setup settings
21 OSD Initial language settings -
Optional
21 To display and exit the Setup menu
22 – Language
22 – Display
23 – Audio
23 Lock (Parental Control)
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 4 2015-05-21  9:29:20
Table of Contents 5
1
2
3
4
5
4 Operating
25 Using the Home Menu
25 Basic Operations
26 Playback Effect
26 AUTO DJ
27 Using a BLUETOOTH® wireless
technology
27 Listening to music of a BLUETOOTH
device
29 Radio Operations
29 Listening to the radio
29 Improving poor FM reception
29 Presetting the Radio Stations
29 Deleting all the saved stations
29 Deleting a saved station
30 Sound adjustment
30 Setting the sound mode
30 Setting the USER EQ
31 Advanced Operations
31 Displaying Disc Information on-screen
31 To display the DVD Menu
31 To display the DVD title
31 1.5 times speed playback
31 Screen Saver
31 Starting play from selected time
31 Resume playback
32 Changing subtitle code page
32 Marked Playback
33 Viewing a PHOTO file
34 Recording to USB
35 Other Operations
35 Sleep Timer Setting
35 – Dimmer
35 Last Scene Memory
35 Power Resume - Optional
35 System Select - Optional
35 Turn off the sound temporarily
36 CHILDSAFE Mode
36 – DEMO
36 VOCAL FADER
36 Using Microphone
37 LIGHTING MODE
37 Setting the Clock
38 Using your player as an alarm clock
38 Auto power down
38 How to disconnect the wireless network
connection or the wireless device.
39 AUTO POWER On
39 Auto function change
40 LG Sound Sync
5 Troubleshooting
41 Troubleshooting
6 Appendix
43 Controlling a TV with the Supplied
Remote Control
43 Setting up the remote to control your
TV
44 Maintenance
44 Handling the Unit
44 Notes on Discs
45 Area Code List
46 Language code List
47 Trademarks and Licenses
48 General specifications
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 5 2015-05-21  9:29:20
Getting Started6
Getting Started
1
Unique Features
BLUETOOTH®
Listens to music stored on your Bluetooth device.
Portable In
Listens to music from your portable device. (MP3,
Notebook, etc.)
LG Sound Sync
Controls volume level of this unit by the remote
control of your LG TV that is compatible with LG
Sound Sync.
Full HD up-scaling
Views Full HD picture quality with simple setup.
Accessories
Please check and identify the supplied accessories.
Remote Control (1) Battery (1)
Power cord (1) FM Antenna (1)
HDMI CABLE (1)
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 6 2015-05-21  9:29:21
Getting Started 7
Getting Started
1
Introduction
Playable Discs
This unit plays DVD±R/RW and CD-R/RW that
contains audio titles, MP3, WMA and/or JPEG les.
Some DVD±RW/DVD±R or CD-RW/CD-R cannot be
played on this unit due to the recording quality or
physical condition of the disc, or the characteristics
of the recording device and authoring software.
DVD-VIDEO (8 cm/12 cm disc)
Discs such as movies that can be
purchased or rented.
DVD±R (8 cm/12 cm disc)
Video mode and nalized only.
DVD-RW (8 cm/12 cm disc)
Video mode and nalized only.
DVD+R: Video mode only
Supports the double layer disc also.
DVD+RW (8 cm/12 cm disc)
Video mode and nalized only.
Audio CD: Music CDs or CD-R/CD-
RW in music CD format that can be
purchased.
About the “
7
” Symbol Display
7
may appear on your TV display during
operation and indicates that the function explained
in this owners manual is not available on that
specic media.
Symbols Used in this Manual
r
DVD-Video, DVD±R/RW in Video
mode or VR mode and nalized
t
Audio CDs
y
Video les contained in the
USB/Disc
u
Audio les contained in the
USB/Disc
i
Photo les contained in the
USB/Disc
,
Note
Indicates special notes and operating features.
,
Tip
Indicates tip and hints for making the task easier.
>
Caution
Indicates cautions for preventing possible damages
from abuse.
Regional Codes
This unit has a regional code printed on the rear of
the unit. This unit can play only DVD discs labeled
same as the rear of the unit or ALL.
y
Most DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your unit’s regional code or
the disc cannot play.
y
If you try to play a DVD with a dierent regional
code from your unit, the message “Check
Regional Code appears on the TV screen.
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 7 2015-05-21  9:29:21
Getting Started8
Getting Started
1
Playable file
Requirement
Music file requirement
MP3/ WMA le compatibility with this unit is limited
as follows :
y
Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y
Bit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
y
Support Version : v2, v7, v8, v9
y
Maximum les : Under 999
y
File extensions : “.mp3”/ “.wma”
y
CD-ROM le format : ISO9660/ JOLIET
y
We recommend that you use Easy-CD Creator,
which creates an ISO9660 le system.
y
You have to set the disc format option to
[Mastered] in order to make the discs compatible
with the LG players when formatting rewritable
discs. When setting the option to Live File
System, you cannot use it on LG players.
(Mastered/ Live File System : Disc format system
for Windows Vista)
The DTS is not supported. In case of DTS audio
format, audio is not output.
Photo file requirement
Photo le compatibility with this unit is limited as
follows :
y
Max pixel in width : 2760 x 2048 pixel
y
Maximum les : Under 999
y
Some discs may not operate due to a dierent
recording format or the condition of disc.
y
File extensions: “.jpg”
y
CD-ROM le format : ISO9660/ JOLIET
Video file requirement
Video le compatibility with this unit is limited as
follows:
y
Available resolution: within 720 x 576 (W x H)
pixels.
y
The le name of the Video subtitle should be
entered within 45 characters.
y
If there is impossible code to express in the
Video le, it may be displayed as “ _ “ mark on the
display.
y
Frame rate : less than 30 fps.
y
If the video and audio structure of recorded
les is not interleaved, either video or audio is
outputted.
y
Playable Video le : “.avi”, “.mpg”, “.mpeg”
y
Playable Subtitle format : SubRip (*.srt/ *.txt),
SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub)
y
Playable Codec format :
“Xvid”, “MPEG-1”, “MPEG-2”
y
Playable Audio format : “AC3”, “PCM”, “MP3”, “WMA”,
y
Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y
Bit rate : within 32 to 320 kbps (MP3), 40 to 192
kbps (WMA)
y
For Discs formatted in Live le system, you can
not it on this unit.
y
If the name of movie le is dierent from that of
the subtitle le, during playback of a Video le,
subtitle may not be display.
y
If you play a Xvid le dier from Xvid spec, it may
not operate normally.
y
If you play GMC video le which is more than
1-warp point, video playback screen will not
smooth.
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 8 2015-05-21  9:29:21
Getting Started 9
Getting Started
1
Remote control
Battery Installation
Remove the battery cover on the
rear of the remote control, and
insert one (size AAA) battery with
4
and
5
matched correctly.
• • • • • •
a
• • • • •
P
FUNCTION : Selects the
function and input source.
MARKER : Marks play list.
1
POWER : Switches the unit ON
or OFF.
B
OPEN/CLOSE : Opens and
closes the disc tray.
SLEEP : Sets the System to turn o
automatically at a specied time.
(Dimmer : The display window will
be darken by half.)
m
INFO/DISPLAY : Accesses On-
Screen Display.
n
HOME : Displays the [Home
Menu].
DISC MENU : Accesses the menu
on a DVD disc.
• • • • • •
b
• • • • •
W/S/A/D
(up/ down/ left/
right) : Used to navigate on-screen
displays.
PRESET +/- : Selects programme
of Radio.
TUNING +/- : Tunes in the desired
radio station.
b
ENTER : Acknowledges menu
selection.
Presetting the radio stations.
x
BACK : Moves backwards in
the menu or exits the setup menu.
TITLE: If the current DVD title has
a menu, the title menu appears
on the screen. Otherwise, the disc
menu may not appear.
• • • • • •
c
• • • • •
Z
STOP : Stops playback.
d
PLAY : Starts playback.
M
PAUSE/STEP : Pauses playback.
C/V
SKIP : Goes to the
next or previous chapter / track /
le.
c/v
SCAN : Searches
backward or forward.
• • • • • •
d
• • • • •
REGION EQ : Chooses region
equalizer.
SOUND EFFECT : Selects a sound
eect mode.
VOL -/+ (Volume) : Adjusts
speaker volume.
AUTO DJ : Selects the AUTO DJ
mode. (For more information refer
to page 26)
MUTE : Mutes the sound.
• • • • • •
e
• • • • •
0-9 numerical buttons : Selects
numbered options in a menu.
h
REPEAT : Selects a play
mode. (Repeat/ Random)
CLEAR : Removes a number when
setting the password.
• • • • • •
f
• • • • •
TV Control buttons : See page 43.
X
REC : USB Direct Recording.
?
: This button is not available.
MIC VOL -/+ : Adjusts microphone
volume.
ECHO VOL -/+ : Adjusts echo
volume.
VOCAL FADER : You can enjoy the
function as karaoke, by reducing
singer vocal of music in the
various source.
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 9 2015-05-21  9:29:22
Getting Started10
Getting Started
1
Top panel
a
1
/
!
POWER ON/OFF
USB Port :
You can play or record sound les
by connecting the USB device.
USB REC / DEMO
- Records to USB.
- Shows Demo mode.
*1 - Display window
b LIGHTING : Turns on/off the lighting effects.
FUNCTION : Selects the function and input
source.
ECHO VOLUME/CONTROL : Adjusts echo
volume.
LATIN EQ : Chooses locally special equalizer.
USER EQ : Controls sound register.
c
T
- Starts or pauses playback.
AUTO DJ
Selects the AUTO DJ mode. (For more
informaion refer to page 26).
BASS BLAST : Selects BASS BLAST or
STANDARD effect directly.
I
: Stops playback.
*2 - MASTER VOLUME : Adjusts speaker
volume.
d
Y/U
: Goes to the next or previous
chapter / track / file.
HOME : Goes to Home menu.
ENTER / SET : Acknowledges menu
selection.
Presetting the radio stations.
e
Bluetooth : Turns to BLUETOOTH function.
REPEAT : Selects a play mode. (Repeat/
Random)
MIC VOLUME/CONTROL : Adjusts Mic
volume.
CLOCK
Sets a clock and checks a time.
ALARM
With the ALARM function you can turn
DISC, USB play and Tuner reception on at
a desired time.
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 10 2015-05-21  9:29:22
Getting Started 11
Getting Started
1
Front panel
B
a
Disc tray
b
MIC 1
c
PORT. IN
d
Remote sensor
e
MIC 2
f
B
: Opens and closes the disc tray.
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 11 2015-05-21  9:29:22
Getting Started12
Getting Started
1
Rear panel
a
ANTENNA (FM)
b
AUX IN (L/R)
AUX OUT (L/R)
c
HDMI OUT
d
Power cord
y
Connect the power cord to wall outlet
directly if possible. Or when you use an
extension cable, it is highly recommended
to use an extension cable of 110 V / 15 A
or 230 V / 15 A, otherwise the unit may not
operate properly because of the lack of
power supply.
y
Do not overload the extension cord with
excessive electrical load.
>
Caution
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 12 2015-05-21  9:29:23
Connecting 13
Connecting
2
Use of Tripod
You can mount the unit on a tripod.
The tripod is an optional purchase.
y
Extend the tripod legs as much as possible
and tighten up the screw securely.
y
Before connecting with the unit, you must
set up the tripod completely to prevent
shaking.
>
Caution
1. Unfold the tripod on a flat surface. And then fix
the tripod.
Tighten up the tightening part of the tripod.
2. Lift the speaker and connect the tripod to fixing
part on the bottom of the speaker.
B
When connecting the speaker and the tripod,
You should work together with more than two
people.
>
Caution
3. Tighten up the Hand screw on the bottom of
the unit.
B
Tighten up the Hand screw on the bottom of
the unit while the other is holding a speaker
and tripod.
>
Caution
2 Connecting
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 13 2015-05-21  9:29:23
Connecting14
Connecting
2
y
If you use a tripod, use the tripod only for
speaker.
y
Before buying a tripod, check the
specications for maximum bearing load
of the center column.
(Unit’s net weight : about 22.7 kg)
B
(B)
(A)
35 mm
y
Use tripod as below :
(A) From tripod’s center to tripod’s leg :
above 600 mm
(B) From top of tripod to bottom of tripod
: below 900 mm
(C) Tripod net weight : over 3.9 kg
y
Use a tripod as low as possible for safety
use.
y
You should pull the center column to the
maximum only in case of need.
y
Mount only one unit on each tripod.
y
Do not try to extent the tripod legs
outside over its allowed range.
y
Make sure the tripod is correctly
assembled and all its components are
tightly connected.
y
Do not try to assemble the tripod if parts
are missing or defective.
y
After installation, check whether the unit is
set up rmly on the tripod or not.
y
Do not place the unit on an unstable
position where it might accidentally fall
over.
y
Add weight such as sand bags around the
tripod legs to prevent them from falling
over.
,
Note
y
You should limit people around the
unit while using this unit with tripod.
Otherwise it may result in malfunction
and causing personal injury or property
damage.
y
Standing on the stool to reach unit control
panel is risky and might lead to injuries.
y
Do not put or attach other objects on the
tripod.
y
Do not shake or push the unit when the
tripod is installed.
y
Refrain from moving around the tripod
after unit is installed.
y
Remove the units from all connected
cables of the tripods before moving the
tripods or adjusting their height.
y
When transporting or moving the unit,
always use two or more people.
y
When you use the tripod, use an extension
cord. always be careful the movement of
cable.
y
It is prohibited to use this unit outside.
(Indoor use only)
y
Do not expose the unit to excessive
dust or vibrations, or extreme cold or
heat (such as in direct sunlight, near a
heater) to prevent the possibility of panel
disguration or damage to the internal
components.
y
When using the external input cable (Mic,
etc.) after installing the unit on the tripod,
external input cable can cause the unit to
fall down.
y
Watch out the people can trip over the
input cable (Mic, etc.) connected the unit.
y
Always be careful of the unit being
tripped.
,
Note
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 14 2015-05-21  9:29:23
Connecting 15
Connecting
2
Connecting the Power
cord
1. Connect the power cord to the unit.
2. Plug the power cord into an outlet.
Connections to Your
TV
HDMI Out Connection
If you have a HDMI TV or monitor, you can connect
it to this unit using a HDMI cable (Type A, High
Speed HDMI™ Cable).
Connect the HDMI OUT jack on the unit to the
HDMI IN jack on a HDMI compatible TV or monitor.
Set the TVs source to HDMI (refer to TVs Owner’s
manual).
Unit
TV
y
You can fully enjoy digital audio and video
signals together with this HDMI connection.
y
When you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 17.)
,
Tip
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 15 2015-05-21  9:29:24
Connecting16
Connecting
2
y
Changing the resolution when the
connection has already been established
may result in malfunctions. To solve the
problem, turn o the unit and then turn it
on again.
y
When the HDMI connection with HDCP is
not veried, TV screen is changed to black
or green screen or the snow noise may
occur on the screen. In this case, check the
HDMI connection, or disconnect the HDMI
cable.
y
Make sure the unit is connected directly
to the TV. Tune the TV to the correct video
input channel.
>
Caution
y
If a connected HDMI device does not accept
the audio output of the unit, the HDMI
device’s audio sound may be distorted or
may not output.
y
When you connect a HDMI or DVI
compatible device make sure of the
following:
- Try switching off the HDMI/DVI device
and this unit. Next, switch on the HDMI/
DVI device and leave it for around 30
seconds, then switch on this unit.
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720 x 480i (or 576i), 720 x 480p (or 576p),
1280 x 720p, 1920 x 1080i or 1920 x 1080p
video input.
y
Not all HDCP-compatible HDMI or DVI
devices will work with this unit.
- The picture will not be displayed properly
with non-HDCP device.
- This unit does not playback and TV screen
is changed to black or green screen or the
snow noise may occur on the screen.
y
If there is noise or lines on the screen, please
check the HDMI cable and use a higher
version cable than High Speed HDMI™
Cable.
y
If you use LG TV or Bluetooth Function of
the unit, the audio is not output to HDMI.
,
Note
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 16 2015-05-21  9:29:24
Connecting 17
Connecting
2
Resolution Setting
The unit provides several output resolutions for
HDMI OUT.
You can change the resolution using [Setup] menu.
1. Press
n
HOME.
2. Use
A/D
to select the [Setup] and press
b
ENTER. The [Setup] menu appears.
3. Use
W/S
to select [Display] option then press
D
to move to the second level.
4. Use
W/S
to select the [Resolution] option
then press
D
to move to the third level.
5. Use
W/S
to select the desired resolution then
press
b
ENTER to confirm your selection.
If your TV does not accept the resolution you
have set on the player, you can set resolution
to 480p (or 576p) as follows:
Press
Z
STOP for more than 5 seconds.
,
Note
Optional Equipment
Connection
AUX IN Connection
Connect an output of auxiliary device (Camcorder,
TV, Player, etc) to the AUX IN (L/R) connector.
If your device has only one output for audio
(mono), connect it to the left audio jack on the unit.
Red
White
Audio cable
DVD, Blu-ray player etc.
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 17 2015-05-21  9:29:24
Connecting18
Connecting
2
AUX OUT Connection
Connect an input of auxiliary device to the AUX
OUT (L/R) connector.
If your device has only one input for audio(mono),
connect it to the left audio jack on the unit.
Audio cable
Auxiliary device
PORT. IN Connection
Connect an output (earphone or line out) of
portable device (MP3 or PMP etc) to the
PORT. IN connector.
B
Portable cable
MP3 player etc.
Listening to music from your
portable player or external device
The unit can be used to play the music from many
types of portable player or external device.
1. Connect the portable player to the PORT. IN
connector on the unit.
Or
Connect the external device to the AUX IN
connector on the unit.
2. Turn the power on by pressing
1
/
!
POWER
ON/OFF.
3. Press
P
FUNCTION to select the AUX or
PORTABLE function.
4. Turn on the portable player or external device
and start it playing.
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 18 2015-05-21  9:29:25
Connecting 19
Connecting
2
USB Connection
Connect a USB device (or MP3 player, etc.) to the
USB ports on the unit.
USB device
Removing the USB device from the unit :
1. Choose a different function/mode or
press
Z
STOP on the remote control or
I
on the unit twice in a row.
2. Remove the USB device from the unit.
,
Note
Compatible USB Devices
y
MP3 Player : Flash type MP3 player.
y
USB Flash Drive : Devices that support USB2.0 or
USB1.1.
y
The USB function of this unit does not support
some USB devices.
USB device requirement
y
Devices which require additional program
installation connected to a computer, are not
supported.
y
Do not extract the USB device while in operation.
y
For a large capacity USB, it may take longer than
a few minute to be searched.
y
To prevent data loss, back up all data.
y
If you use a USB extension cable or USB hub, the
USB device is not recognized.
y
Using NTFS le system is not supported. (Only
FAT(16/32) le system is supported.)
y
This unit is not supported when the total
number of les is 1000 or more.
y
External HDD, Card readers, Locked devices,
or hard type usb devices are not supported.
y
USB port of the unit cannot be connected to PC.
The unit can not be used as a storage device.
y
Some USB Devices may not work with this unit.
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 19 2015-05-21  9:29:25
Connecting20
Connecting
2
Antenna Connection
Connect the supplied FM antenna for listening to
the radio.
Connect the FM wire antenna to the FM antenna
connector.
FM antenna
Be sure to fully extend the FM wire antenna.
,
Note
OM7550D-FB.DPANLLK_FULL BOOK_ENG_MFL68982105.indd 20 2015-05-21  9:29:25
  • Page 1 1
  • Page 2 2
  • Page 3 3
  • Page 4 4
  • Page 5 5
  • Page 6 6
  • Page 7 7
  • Page 8 8
  • Page 9 9
  • Page 10 10
  • Page 11 11
  • Page 12 12
  • Page 13 13
  • Page 14 14
  • Page 15 15
  • Page 16 16
  • Page 17 17
  • Page 18 18
  • Page 19 19
  • Page 20 20
  • Page 21 21
  • Page 22 22
  • Page 23 23
  • Page 24 24
  • Page 25 25
  • Page 26 26
  • Page 27 27
  • Page 28 28
  • Page 29 29
  • Page 30 30
  • Page 31 31
  • Page 32 32
  • Page 33 33
  • Page 34 34
  • Page 35 35
  • Page 36 36
  • Page 37 37
  • Page 38 38
  • Page 39 39
  • Page 40 40
  • Page 41 41
  • Page 42 42
  • Page 43 43
  • Page 44 44
  • Page 45 45
  • Page 46 46
  • Page 47 47
  • Page 48 48
  • Page 49 49
  • Page 50 50

LG OM7550D Owner's manual

Type
Owner's manual

Ask a question and I''ll find the answer in the document

Finding information in a document is now easier with AI
