Duplo Express
Sealer EX-2000
Service Manual
1
Introduction
Symbols and Notations in this manual
Safety precautions
Various symbols and pictures are used in this manual and on the stickers affixed to the machine. These symbols
and pictures provide warnings and instructions to prevent danger to you or other personnel, and to prevent
damage to office property. The meanings of these symbols and pictures are explained below.
WARNING
Indicates a high degree of potential danger. Ignoring the warning may result in death or
serious injury of personnel.
CAUTION
Indicates a medium degree of potential danger. Ignoring the caution may result in injury of
personnel or damage to properties.
Examples of pictorial symbols
A circle with a line through it indicates a prohibited action. The particular act
prohibited is indicated by a picture inside the circle. ( In the example on the right
indicates ‘disassembly is prohibited.’
A black disc indicates an instruction , or sometimes a prohibited action. The
instruction itself is indicated by pictorial symbols drawn in white on the disc. ( In the
example on the right indicates ‘Remove the plug from the outlet.’
Other Notations
IMPORTANT Notes on faulty operation/maintenance which can damage products or disturb
its performance.
REF. Information in regards to the performance of the product, operation or maintenance.
2
3
4
Introduction 1
1. Specifications 5
2. Parts names and their functions 6
3. Paper flow and operating principle 7
4. Operating sequence 8
5. Circuits and their operation 8
6. Maintenance and adjustments 11
7. HELP mode 20
8. Error message displays 23
9. Electrical parts 26
Contents
5
1. Specifications
No. Item Specification Remarks
1 Type Desktop
2 Model name EX-2000
Paper size
Length 279.4 (11”) - 355.6mm (14”)
Width 210mm - 215.9mm (8.5”)
Finished size
Length 93.1mm - 48.5mm
Width 210mm - 215.9mm (8.5”)
24lb 90g/ - 32lb 120g/
Paper type
Envelop paper with pressure sensitive adhesive along
the edges of the front
* Do not use envelop paper with pressure sensitive
adhesive applied overall.
7000 sheets/hour FAST
Processing speed
8.5”×11”
Z-fold envelop
5000 sheets/hour SLOW
Under operating
temperature
Feed system
Friction feed system based on rubber rollers and paper
separation plate
Feed capacity 200 Z-fold (accordion fold) envelopes (thickness: 28lb)
Fold types V-fold, C-fold, Z-fold, EZ-fold, EC-fold
1st panel 60mm - 266.7mm
10 Fold size
2nd panel 60mm – 118.5mm
11 Stacker type Gravity stacker
12 Stacker capacity 200 Z-fold (accordion fold) envelopes (thickness: 28lb)
Functions & safety
system
Test operation
Paper detection
JAM detection for all paper paths
Cover interlock
Manual feed
Double feed detection
Speed selection
Batch count
4
Dimensions
[In use] 756mm D ×701 W ×533 H
[Folded] 633 D ×465 W ×403 H
5 Weight 54kg (folder: 22.5kg, sealer: 31.5kg)
6 Power source AC115 ±10 60Hz 3A
7 Power consumption 330W
18
Operating
temperature
10 – 30
19
Operating humidity
40 – 70% (No condensation)
Notice: Specifications are subject to change for improvement without notice.
6
2. Parts names and their functions
No. Name Function
1 Feed pressure
adjuster lever
Adjusts feed pressure according to paper thickness. Normally set to
“Standard”.
2 Paper feed guides Makes smooth paper transport by adjusting the guides to the paper size.
3 Double feed detection
adjuster knob
Adjusts double feed detection according to paper thickness.
4 Paper set lever Lower this lever before loading paper and raise it to start operation.
5 Control panel Use keys for operation. The display shows the current operational status.
6 Power switch Press the “I” to turn on and “” to turn off.
7 Folding tray 1 Used for all foldings (Z-fold, C-fold, V-fold)
8 Folding tray 2 Used for Z-fold and C-fold. Install the turn guide for V-fold.
9 Support tray Used when setting paper.
10 Handle slot Insert the handle to remove jammed paper or clean the rubber rollers.
11 Stacker stopper Adjust this stopper according to ejected paper.
12 Stacker guide Adjust these guides according to ejected paper.
13 Safety cover Open this cover to adjust the transport guide or to remove jammed paper.
1
12
7
3
2
4
8
10
6
5
13
11
7
PPS sensor 1
Paper
tray
Paper
3. Paper flow and operating principle
3-1 Folding section
1 Papers loaded on the feed tray are separated to 1
sheet by the separator unit when being fed by the
paper feed ring.
(The timing for feeding the paper is controlled by the
PPS 1 which senses paper flow.)
2 In the double feed detecting section, the paper presses
up the upper double feed detection roller when it passes
between the rollers. When the upper roller is pressed
up higher than reference position, double feed is detected
and the machine stops.
(Error message ‘DOUBLE FEED’ will appear in the display.)
3 The paper passed through the double feed detection
section is fed to the folding tray 1 by the folding rollers
1 and 2, and stops at the stopper. The stopped paper
sags and is fed to the path between the folding rollers
2 and 3, and then is fed to the folding tray 2.
Support tray
Paper feed ring
Paper tray
PPS sensor 1
(light receiving)
Paper separator unit
PPS sensor 1
(light emitting)
Double feed
detection roller
Folding roller 1
Folding roller 2
Folding tray 1
Folding roller
Folding roller 3
PPS sensor 2
(light receiving)
PPS sensor 2
(light emitting)
Ejection
roller
Parts name
Double feed
detection roller
Folding roller 3
Folding roller 1
Folding tray 1
Folding roller 2
8
4 The paper fed to the folding tray 2 sags by bumping
the stopper as well as the flow in the folding tray 1,
and is fed to the path between the folding rollers 3
and 4, and then is fed to the sealer section by the
ejection roller.
(When V-fold is executed, the paper is fed directly
to the path between the folding rollers 3 and 4 from
the folding tray 1 by leading with the turn guide.)
3-2 Sealer section
1. The paper fed to the sealer section touches the stopper,
and is fed to the pressure roller section by the feed
rollers and roller.
2. The temporary sealed part in the folding section of the
paper fed is peeled off by the bracket F (upper and lower)
installed adjacent to the feed roller, and then is fed to the
pressure roller section.
3. The paper is applied by strong pressure between the
pressure rollers, and pressure sensitive adhesive
parts are adhered.
Folding tray 2
Folding roller 2
Stopper
Folding roller 4
Stopper
PPS sensor 3
(light receiving)
PPS sensor 3
(
li
g
ht emittin
g)
Feed roller
Pressure roller (lower)
Pressure roller (upper)
Bracket F (lower)
Bracket F (upper)
Parts names
Roller
Feed roller
Roller
Pressure
roller
(
u
pp
er
)
Pressure roller
(lower)
Folding
roller 3
Bracket F (upper)
Bracket F (lower)
4. Operating sequence
5. Circuits and their operation
Paper empty SW circuit
A sensor is installed on the feed tray
and detects paper empty.
PPS1 circuit
PPS1 is installed in the paper feeding section,
and detects that the paper is properly fed.
PPS2 circuit
PPS2 is installed in front of the eject roller,
and detects that the paper is ejected.
10
PPS3 circuit
PPS3 is installed at the back of the feed roller,
and detects that the paper is properly fed.
11
6. Maintenance and adjustments
Exterior
* Remove the folding plate, support tray, stacker guides, and the stacker stopper before starting maintenance.
Removing covers
[Side cover R assy]
Remove the 4 screws in the circles in the photographes 1, 2,
and 3. Disconnect the connectors (yellow, yellow, white,
white) interlock swtich connecting
to the machine, and then remove
the cover R.
[Side cover L]
Remove the 2 screws in the circles in the phototgraph 4.
Remove the side cover L with lifting up.
Refer to the photograph 5 for installing the side cover L.
Fit the stay hole at the lower part of the side cover L on the screw
of the rubber foot at the lower part of the frame. (2 points)
Side cover L
Sealer cover 2
Sealer cover 1
Side cover R (lower)
Side cover R assy
Interlock switch connecto
r
Photograph 1
Photograph 3 Photograph 2
Photograph 5
Photograph 4
12
[Sealer cover 1]
Remove the 3 screws (3mm taptight) indicated in the right
photograph and remove the cover toward you.
[Sealer cover 2]
Remove the 3 screws in the circles in the right photographes,
Disconnect the connectors (yellow, yellow, white, white) of
the interlock switch connecting to the machine, and then
remove the sealer cover 2 with lifting up.
Maintenance
[Folder side]
Paper feed section
Slide the paper feed ring assy in the direction of the arrow in the
right photograph.
After joint part is released, extend the paper feed guides, and
pull out the joint toward you.
Loosen the set screw and remove the paper feed ring. (3 pcs.)
For installing, follow the reverse procedure.
Interlock switch connecto
r
Loosen the screw.
Take out to the direction of the arrow.
Tighten the set screw so that it fits the counterbore of
the paper feed shaft.
Paper feed rings should be r eplaced as a set (3 pcs.).
Mixture of old ring and new one may cause skew.
13
Replacing the main PCB
Remove the 10 connectors and the 4 screws
and then remove the main PCB.
Replacing the main motor
Remove the 4 screws indicated in the right photograph,
and remove the rear cover.
Remove the 4 nuts indicated in the
photograph 1, and remove the main
motor toward the arrow in the
photograph 2.
Caution should be taken for the belt tension when installing the motor.
(Adjust the motor position by applying load of 300g to the midpoint of
the belt between the pulleys so that a slack (3mm±1mm) can be made.)
Main PCB
Rear cover
Photograph 1
Photograph 2
Connector Screw
14
Replacing the flat belt
Remove the 3 screws indicated in the photograph
(left side), and then remove the bracket.
Take out the paper feed clutch from the
bush in the photograph (right side).
Loosen the 2 screws indicated in the right
photograph to move the tension roller, and
then remove the belt.
For installing the belt, follow the reverse procedure.
(Adjust the position of the tension roller by applying load of 300g
to the indicated place in the right photograph so that a slack
(1mm±0.5mm) can be made.)
[Sealer side]
Replacing motor and electrical parts
1. Remove the timing belt for driving conveyer. (no adjustment)
2. Loosen the 4 screws in the circles in the photograph 1, and remove the timing belt for driving roller
3. Remove the C ring and then remove the pulley unit (idler) in the photograph 1.
4. Remove the 4 screws in the squres in the photographs1 and 2.
Bracket
Paper feed
clutch
Photograph 2
Timing belt for driving conveyer
Pulley unit (idler)
Photograph 1
Roller driving belt
15

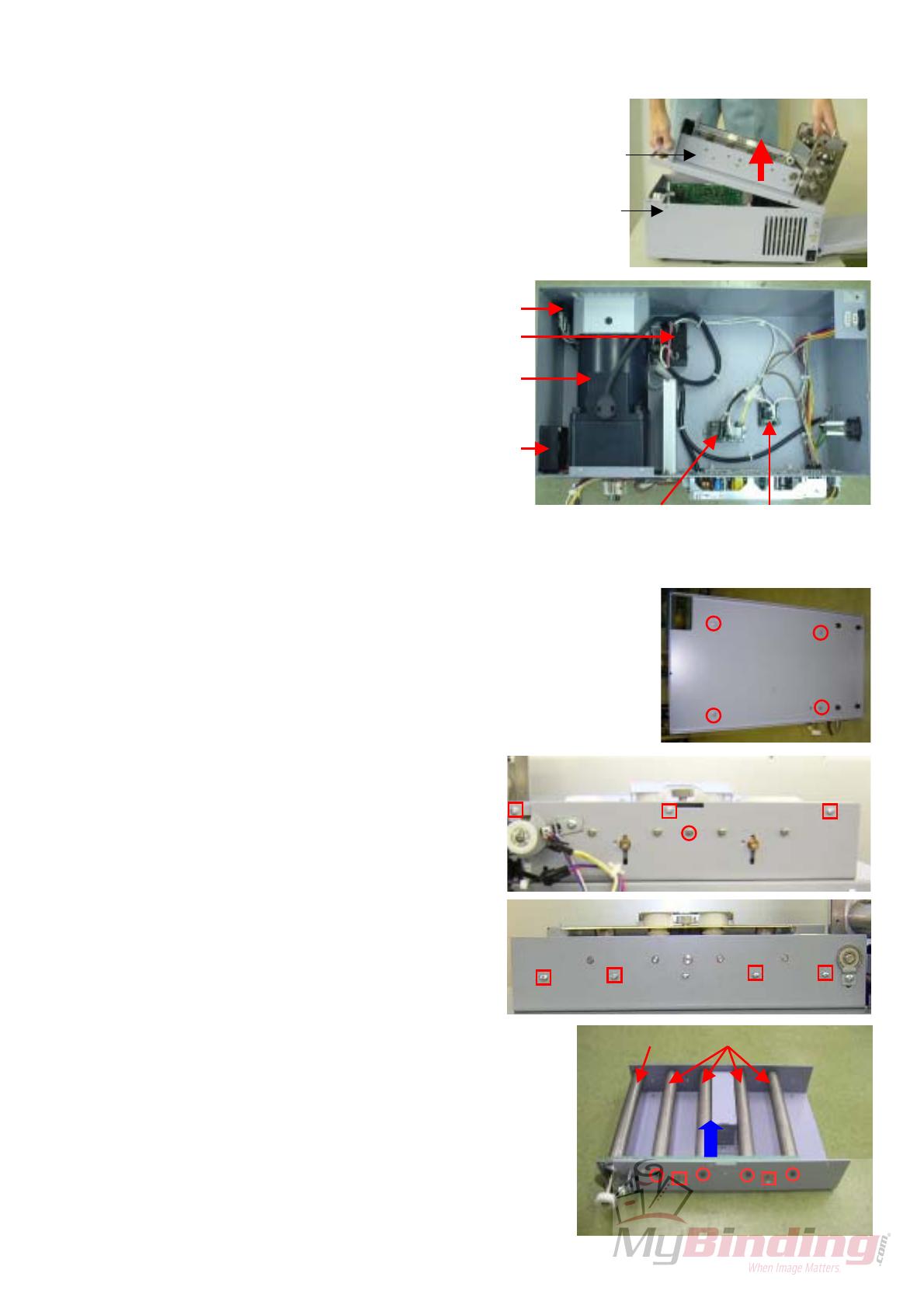

5. Remove the encoder sensor and PPS3 cable,
and then take out the cabinet 2 by lifting it up
as shown in the right photograph.
6. Inside of the cabinet 1 is as shown
in the right photograph.
(Refer to the circuit diagram on page
28.)
Replacing conveyer belt
1. Remove the 4 screws indicated in the photograph 1
to remove the cabinet 2 and the conveyer unit.
2. Remove the screw in the circle in
the photograph 2 to pull out the shaft.
Remove the stopper.
(Do not lose the plastic balls (2 pcs.) by the side of
thumb screw and the sliders (2 pcs.) at both sides.)
3. Remove the screws in the squres in the photographs
2 and 3, and then remove the upper cover.
4. Remove the screws in the circles in the photograph 4,
and then remove the pipes.
Remove the bearing stopper installing the roller, and
then remove the roller.
5. Replace the belt. After replacing the belt,
Install the roller and the pipes. Adjust the
belt tenstion with the tension in the squres.
(A slack should be 1±0.5mm when pulling up
the place indicated with a blue arrow by the
force of 400g.)
Cabinet 1
Cabinet 2
A
C gear moto
r
Circuit protector
Fan motor
Power relay
SSR
Capacitor
Photograph 1
Photograph
Photograph 2
Photograph 4 Roller Pipes
16
Replacing scraper
Remove the 4 screws indicated in the right photograph,
and then remove the both bracket Rs.
(Both the upper bracket R and the lower one are the same.)
Remove the screws indicated in the right
photograph, and then replace the scraper.
After replacing it, install the scraper so that
it appears by 7mm from the edge of the
bracket.
17
[Adjustments]
Adjusting double feed detection unit
Parts names
1. Turn the eccentric pin until the gap between the upper
and lower detection rollers is at the maximum setting.
Insert a sheet of 70kg (approximately) paper between
the detectio rollers.
2. Turn the eccentric pin until it touches the hole,
Then fasten it with the screw.
3. Adjustment completes when the lever does not move
by running a sheet of paper between the detection
rollers and it moves by running 2 sheets of paper.
Folding roller 2
Folding roller 1
Detection roller
(lower)
Detection roller
(upper)
Hole
Eccentric pin
Lever
Photo sensor
Fulcrum
Supporting point
Eccentric
pin
Enlarged
veiw
There should be no gap.
Paper
Paper
18
Adjusting folding roller
1. Loosen the 2 screws holding the bearing holder of each roller.
Slide the folding rollers 1 and 3 along the elongate hole taking
the roller 2 as reference so that these rollers are pressed up the
roller 2.
2. Adjust the folding roller 4 taking the folding roller 3 adjusted in
the step 1 as reference.
* Each roller should be symmetrical to the left and right, and
there should be no gap between rollers. (Asymmetrical roller
pressure causes snaking or wrinkling.)
* After adjustment, a roller should rotate without flat belt and all rollers should drive together.
Adjusting pressure of pressure roller
1. Turn the screw shaft for adjusting pressure
until the top edge of the shaft touches the
pin top.
2. Turn the screw shaft clockwise with a handle
for 180 from the contact position in the step 1.
(symmetrical to the left and right)
* Turning the screw shaft clockwise increases
the pressure.
* Turning the screw shaft counterclockwise
decreases the pressure.
Note: Asymmetrical roller pressure causes snaking or uneven
pressurizing.
Adjusting interlock switc
Handle slot, sealer side
Safety cover
Folding tray 1
Folding tray 2
Handle slot, folder side
* 2 pcs. of micro switch (5V, 24V) are set at each 5 interlock
switches. The machine operates only when all the micro switches are ON.
Circuit diagram
Screw shaft
Pin
Belleville
spring
Bearing holder
Care should taken for installed
direction of belleville spring.
  • Page 1 1
  • Page 2 2
  • Page 3 3
  • Page 4 4
  • Page 5 5
  • Page 6 6
  • Page 7 7
  • Page 8 8
  • Page 9 9
  • Page 10 10
  • Page 11 11
  • Page 12 12
  • Page 13 13
  • Page 14 14
  • Page 15 15
  • Page 16 16
  • Page 17 17
  • Page 18 18
  • Page 19 19
  • Page 20 20
  • Page 21 21
  • Page 22 22
  • Page 23 23
  • Page 24 24
  • Page 25 25
  • Page 26 26
  • Page 27 27
  • Page 28 28
  • Page 29 29
  • Page 30 30

Duplo EX-2000 User manual

Category
Folding machines
Type
User manual

Ask a question and I''ll find the answer in the document

Finding information in a document is now easier with AI
