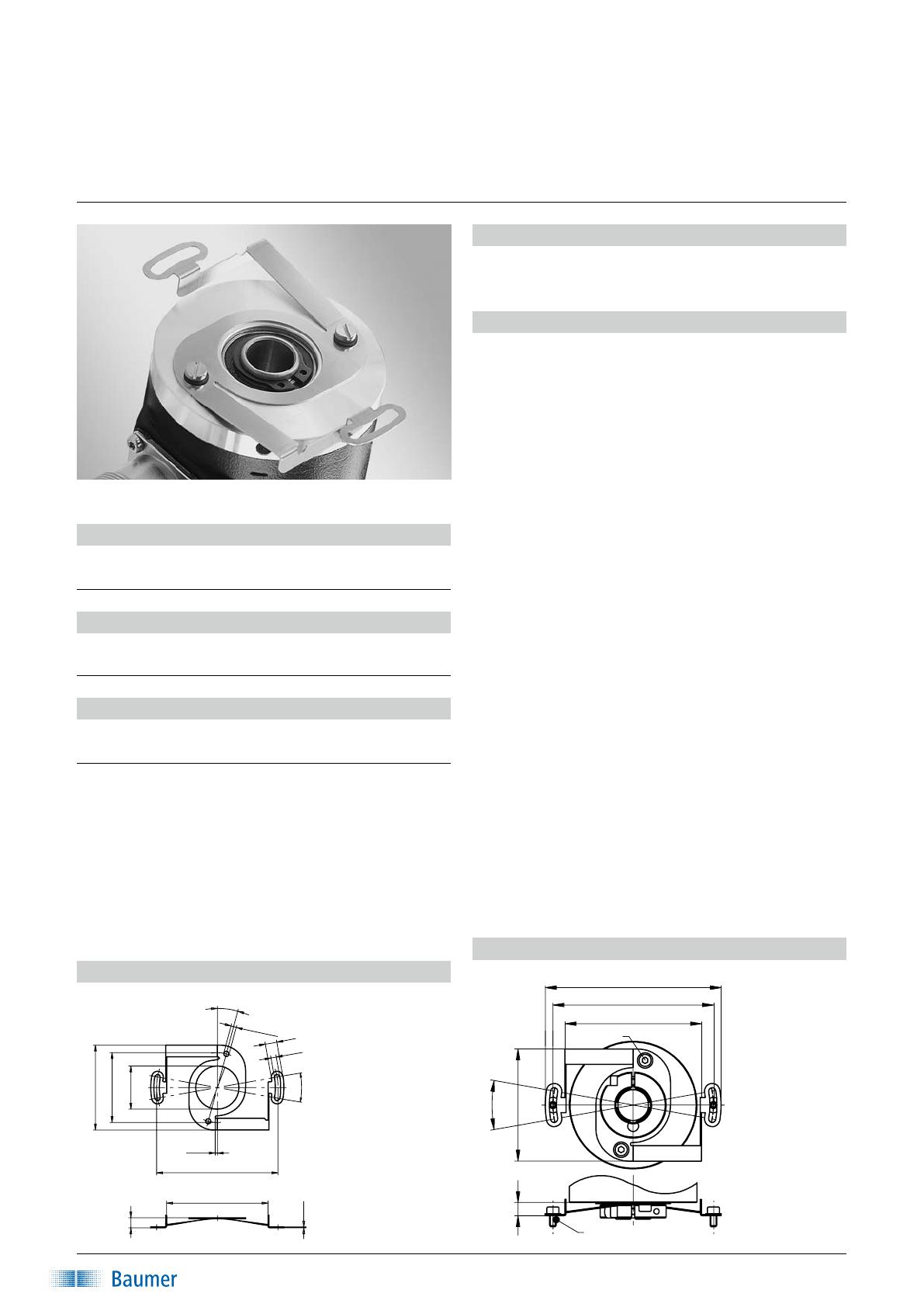

Baumer Spring coupling for encoders Datasheet

Brand
Baumer
Model
Spring coupling for encoders
Type
Datasheet
www.baumer.com/motion
Accessories
1
Subject to modication in technic and design. Errors and omissions excepted.27/11/2018
Mounting accessories
15°
0.5
61
6
73
±0.4
51
42
±0.1
26
1.25
3.2
±0.03
8
3.2
20°
Dimensions
Part number
10157338 Spring coupling for encoders with ø58 mm
housing (Z 119.023)
Spring washer for encoders with ø58 mm housing
Features
Flexible spring coupling
For applications with little radial misalignment
Scope of delivery
Included: spring coupling, four screws M3 x 6 with four
spring washers
73
81
SW2.5
62
20°
516
M3x6 DIN912
Assembly drawing
Description
Fix spring coupling onto ange by help of the attached
screws. Push encoder onto the drive shaft and mount
spring coupling onto the intended contact surface.
Suitable for
G0333, G0A2H, G0M2H, GE333, GI330, GI331, GI332,
GI333, GI341, GI342, GXA2S, GXM2S
/
