Kenmore 10689589702 Owner's manual

Brand: Kenmore

Model: 10689589702

Type: Owner's manual

This manual is also suitable for

Ice Maker

F6brica de hielo

Machine _ gla(_ons

Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

W10136158B Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca

TABLEOF CONTENTS

WARRANTY ..................................................................................... 2

ICE MAKER SAFETY ...................................................................... 3

INSTALLATION INSTRUCTIONS .................................................. 3

Unpack the Ice Maker .................................................................. 3

Location Requirements ................................................................ 4

Electrical Requirements ................................................................ 4

Water Supply Requirements ........................................................ 5

Leveling ......................................................................................... 5

Connect Water Supply ................................................................. 5

Drain Connection .......................................................................... 7

Ice Maker Door ............................................................................. 8

Normal Sounds ............................................................................. 9

ICE MAKER USE ............................................................................ 9

How Your Ice Maker Works ........................................................ 9

Using the Controls ..................................................................... 10

ICE MAKER CARE ....................................................................... 10

Cleaning ..................................................................................... 10

Vacation and Moving Care ........................................................ 12

TROUBLESHOOTING .................................................................. 13

Ice Maker Operation .................................................................. 13

Ice Production ........................................................................... 13

Ice Quality .................................................................................. 14

Plumbing Problems ................................................................... 14

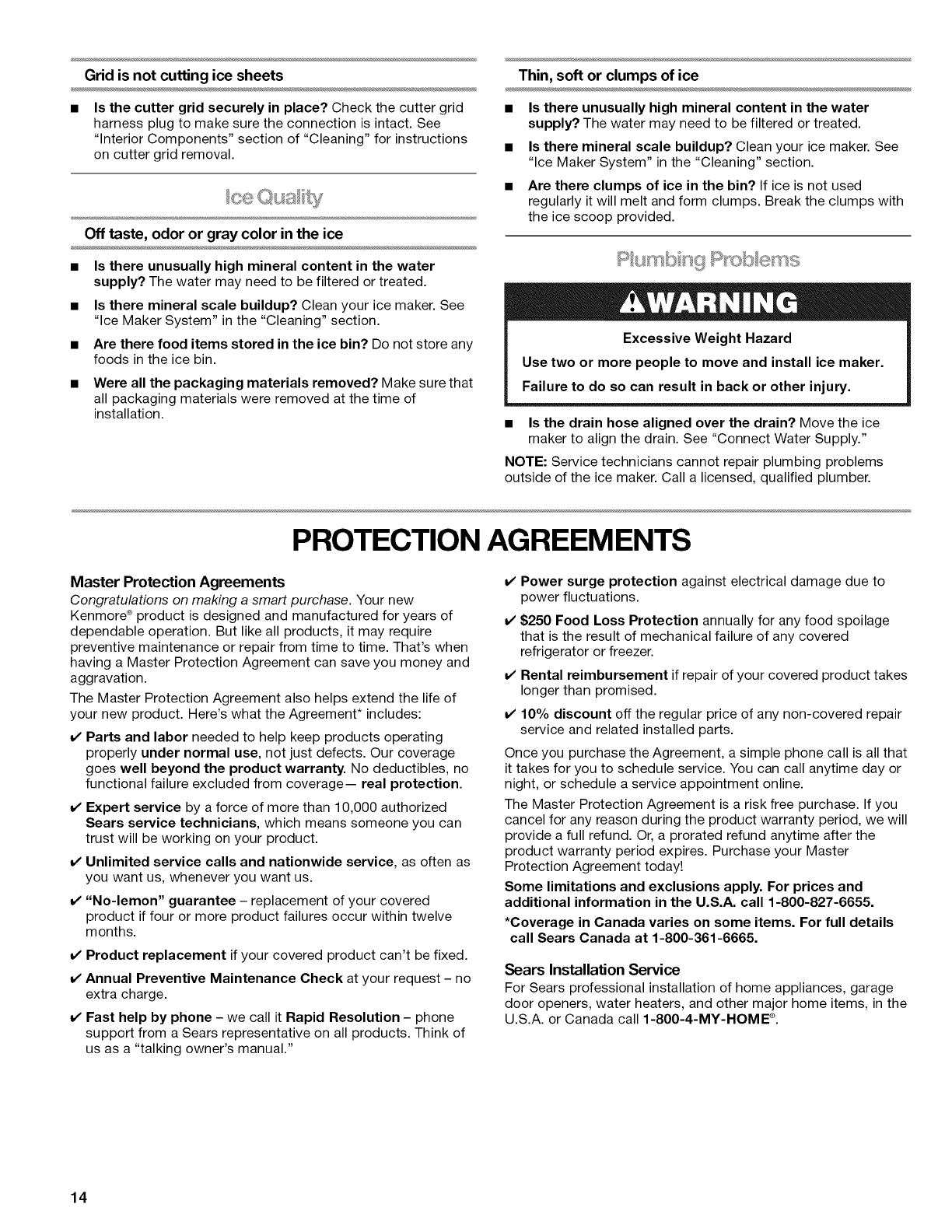

PROTECTION AGREEMENTS .................................................... 14

SERVICE NUMBERS ............................................... BACK COVER

WARRANTY

ONE-YEAR FULL WARRANTY ON ICE MAKER

For one year from the date of purchase, when this ice maker is

operated and maintained according to instructions supplied with

it, Sears will repair this ice maker, free of charge, if defective in

material or workmanship.

ONE-YEAR LIMITED WARRANTY ON ICE MAKER

For one year from the date of purchase, when this ice maker is

used for commercial use and is operated and maintained

according to instructions supplied with it, Sears will provide, free

of charge, replacement parts for any parts defective in materials

or workmanship. You pay for labor.

FIVE-YEAR FULL WARRANTY ON SEALED REFRIGERATION

SYSTEM

For five years from the date of purchase, when this ice maker is

operated and maintained according to instructions supplied with

it, Sears will repair the sealed system (consisting of refrigerant,

connecting tubing, and compressor motor), free of charge, if

defective in materials or workmanship.

WARRANTY SERVICE

Warranty service is available in the United States or Canada by

contacting Sears at 1-800-4-MY-HOME ®(1-800-469-4663).

This warranty applies only while this product is in use in the

United States or Canada.

This warranty gives you specific legal rights, and you may also

have other rights which vary from state to state or province to

province.

Warranty terms may vary in Canada. Contact your local Sears

Service Center for complete details.

Sears, Roebuck and Co.

Hoffman Estates, IL 60179

Sears Canada, Inc.

Toronto, Ontario, Canada M5B 2B8

Product Record

In the space below, record your complete model number, serial

number, and purchase date. You can find this information on the

model and serial number label.

Have this information available to help you obtain assistance or

service more quickly whenever you contact Sears concerning

your ice maker.

Model number

Serial number

Purchase date

Save these instructions and your sales receipt for future

reference.

ICE MAKER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages inthis manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WAR NING: To reduce the risk of fire, electric shock, or injury when using your ice maker, follow these basic

precautions:

• Plug into a grounded 3 prong outlet.

• Do not remove ground prong.

• Do not use an adapter.

• Do not use an extension cord.

• Disconnect power before cleaning.

• Disconnect power before servicing.

• Replace all parts and panels before operating.

• Use two or more people to move and install ice maker.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

Excessive Weight Hazard

Use two or more people to move and install ice maker.

Failure to do so can result in back or other injury.

Removing Packaging Materials

Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. Do not

use chlorine bleach on the stainless steel surfaces of the ice

maker. These products can damage the surface of your ice

maker.

Cleaning Before Use

After you remove all of the packaging materials, clean the inside

of your ice maker before using it. See the cleaning instructions in

the "Ice Maker Care" section.

Remove tape and glue from your ice maker before using.

• To remove any remaining tape or glue from the exterior of the

ice maker, rub the area briskly with your thumb. Tape or glue

residue can also be easily removed by rubbing a small

amount of liquid dish soap over the adhesive with your

fingers. Wipe with warm water and dry.

• Toensureproperventilationforyouricemaker,thefrontside

mustbecompletelyunobstructed.Theicemakermaybe

closed-inonthetopandthreesides,buttheinstallation

shouldallowtheicemakertobepulledforwardforservicing

ifnecessary.

• Installationoftheicemakerrequiresacoldwatersupplyinlet

of1/4"(6.35mm)ODsoftcoppertubingwithashutoffvalve

andeitheragravity-drainsystemorcondensatepumpto

carrythewatertoanexistingdrain.

• Chooseawellventilatedareawithtemperaturesabove55°F

(13°C)andbelow110°F(43°C).Bestresultsareobtained

between70°F(21°C)and90°F(32°C).

• Thisunitmustbeinstalledinanareashelteredfromthe

elements,suchaswind,rain,waterspray,ordrip.

• Wheninstallingtheicemakerunderacounter,followthe

recommendedopeningdimensionsshown.Placeelectrical

andplumbingfixturesintherecommendedlocationas

shown.

NOTES:

• Besurethepowersupplycordisnotpinchedbetween

theicemakerandthecabinet.

• Besurethewatersupplylineisnotpinchedbetweenthe

icemakerandthecabinet.

• Besurethedrainline(onsomemodels)isnotpinched

betweentheicemakerandthecabinet.

34 II

(86.4 cm)

Min.

341/2"

(87.6 cm)

Max.

24"

60.1 cm)

281/2.

(72.4 cm)

15"

(38.1 cm)

A. Recommended location for electrical

and plumbing fixtures

B.Floor level

Choose a location where the floor is even. It is important for

the ice maker to be level in order to work properly. If needed,

you can adjust the height of the ice maker by changing the

height of the leveling legs. See "Leveling."

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

Before you move your ice maker into its final location, it is

important to make sure you have the proper electrical

connection:

A 115 Volt, 60 Hz., AC only, 15- or 20-amp electrical supply,

properly grounded in accordance with the National Electrical

Code and local codes and ordinances, is required.

It is recommended that a separate circuit, serving only your ice

maker, be provided. Use a receptacle which cannot be turned off

by a switch or pull chain.

IMPORTANT: If this product is connected to a GFCI (Ground

Fault Circuit Interrupter) equipped outlet, nuisance tripping of the

power supply may occur, resulting in loss of cooling. Ice quality

may be affected. If nuisance tripping has occurred, and if the

condition of the ice appears poor, dispose of it.

Recommended grounding method

This appliance must be grounded. This appliance is equipped

with a power supply cord having a 3 prong grounding plug. The

cord must be plugged into a mating, 3 prong, grounding-type

wall receptacle, grounded in accordance with the National

Electrical Code and local codes and ordinances. If a mating wall

receptacle is not available, it is the personal responsibility of the

customer to have a properly grounded, 3 prong wall receptacle

installed by a qualified electrician.

A cold water supply with water pressure of between 30 and

120 psi (207 and 827 kPa) is required to operate the ice maker. If

you have questions about your water pressure, call a licensed,

qualified plumber.

Reverse Osmosis Water Supply

IM PORTANT:

• Reverse osmosis water filtration systems can be used only

with ice maker installations that have a gravity drain. A

reverse osmosis system is not recommended for ice makers

that have a drain pump installed.

• The pressure of the water supply coming out of a reverse

osmosis system going to the water inlet valve of the ice

maker needs to be between 30 and 120 psi (207 and

827 kPa).

If a reverse osmosis water filtration system is connected to your

cold water supply, the water pressure to the reverse osmosis

system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

NOTE: The reverse osmosis system must provide 1 gal. (3.8 L) of

water per hour to the ice maker for proper ice maker operation. If

a reverse osmosis system is desired, only a whole-house

capacity reverse osmosis system, capable of maintaining the

steady water supply required by the ice maker, is recommended.

Faucet capacity reverse osmosis systems are not able to

maintain the steady water supply required by the ice maker.

If the water pressure to the reverse osmosis system is less than

40 to 60 psi (276 to 414 kPa):

• Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

• Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

If you have questions about your water pressure, call a licensed,

qualified plumber.

It is important for the ice maker to be level in order to work

properly. Depending upon where you install the ice maker, you

may need to make several adjustments to level it. You may also

use the leveling legs to lower the height of the ice maker for

undercounter installations.

Tools needed:

Gather the required tools and parts before starting installation.

• 9" level

• Adjustable wrench

NOTE: It is easier to adjust the leveling legs if you have another

person to assist you.

1. Move the ice maker to its final location.

NOTE: If this is a built-in installation, move the ice maker as

close as possible to the final location.

2. Place the level on top of the product to see if the ice maker is

level from front to back and side to side.

Push up on the top front of the ice maker, and then locate the

leveling screws that are on the bottom front of the ice maker.

Using an adjustable wrench, change the height of the legs as

follows:

• Turn the leveling leg to the right to lower that side of the

ice maker.

• Turn the leveling leg to the left to raise that side of the ice

maker.

NOTE: The ice maker should not wobble. Use shims to add

stability when needed.

5. Push up on the top rear of the ice maker and locate the

leveling legs that are on the bottom rear of the ice maker.

6. Follow the instructions in Step 4 to change the height of the

legs.

7. Use the level to recheck the ice maker to see that it is even

from front to back and side to side. If the ice maker is not

level, repeat steps 2 to 5. If the ice maker is level, go to the

"Connect Water Supply" section.

Read all directions before you begin.

IMPORTANT:

• Plumbing shall be installed in accordance with the

International Plumbing Code and any local codes and

ordinances.

• Use copper tubing and check for leaks.

• Install tubing only in areas where temperatures will remain

above freezing.

Tools needed:

Gather the required tools and parts before starting installation.

• Flat-blade screwdriver

• 7/le"and V2"open-end wrenches or two adjustable wrenches

• _/4"nut driver

NOTE: Do not use a piercing-type or 3/_e"(4.76 mm) saddle valve

which reduces water flow and clogs more easily.

Connecting the Water Line

1. Turn off main water supply. Turn on nearest faucet long

enough to clear line of water.

2. Using a 1/2"copper supply line with a quarter-turn shutoff

valve or the equivalent, connect the ice maker as shown.

NOTE: To allow sufficient water flow to the ice maker a

minimum 1/2"size copper supply line is recommended.

A. Bulb

B. Nut

Now you are ready to connect the copper tubing. Use 1/4"

(6.35 mm) OD soft copper tubing for the cold water supply.

• Ensure that you have the proper length needed for the

job. Be sure both ends of the copper tubing are cut

square.

Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert end of tubing into outlet

end squarely as far as it will go. Screw compression nut

onto outlet end with an adjustable wrench. Do not

overtighten.

A. Compression sleeve

B. Compression nut

C. Copper tubing

D. Coupling (purchased)

Place the free end of the tubing into a container or sink, and

turn on main water supply and flush out tubing until water is

clear. Turn off shutoff valve on the water pipe.

NOTE: Always drain the water line before making the final

connection to the inlet of the water valve to avoid possible

water valve malfunction.

Bend the copper tubing to meet the water line inlet which is

located on the back of the ice maker cabinet as shown.

Leave a coil of copper tubing to allow the ice maker to be

pulled out of the cabinet or away from the wall for service.

REAR VIEW

A. Water supply tube clamp

B. Vent hose (drain pump models only)

C. Water supply line

D. Inlet water tube clamp

E. Drain hose (drain pump models only)

Remove and discard the short, black plastic tube from the

end of the water line inlet.

Thread the nut onto the coupling on the end of the tubing.

Tighten the nut by hand. Then tighten it with a wrench two

more turns. Do not overtighten.

NOTE: To avoid rattling, be sure the copper tubing does not

touch the cabinet's side wall or other parts inside the cabinet.

A B C D E F G

A. Line to ice maker

B. Nut (purchased)

C. Ferrule (purchased)

D. Coupfing (purchased)

E.Ferrule

F Nut

G. Suppfied fine from

ice maker

8. Install the water supply tube clamp around the water supply

line to reduce strain on the coupling.

9. Turn shutoff valve ON.

10. Check for leaks. Tighten any connections (including

connections at the valve) or nuts that leak.

Gravity Drain System

Connect the ice maker drain to your drain in accordance with all

state and local codes and ordinances. If the ice maker is

provided with a gravity drain system, follow these guidelines

when installing drain lines. This will help keep water from flowing

back into the ice maker storage bin and potentially flowing onto

the floor causing water damage.

• Drain lines must have a minimum of 5/8"(15.88 mm) inside

diameter.

• Drain lines must have a 1" drop per 48" (2.54 cm drop per

122 cm) of run or 1/4"drop per 12" (6.35 mm per 30.48 cm) of

run and must not have low points where water can settle.

• The floor drains must be large enough to accommodate

drainage from all drains.

• The ideal installation has a standpipe with a 11/2"(3.81 cm) to

2" (5.08 cm) PVC drain reducer installed directly below the

outlet of the drain tube as shown. You must maintain a

1" (2.54 cm) air gap between the drain hose and the

standpipe.

• It may be desirable to insulate the drain line thoroughly up to

the drain inlet.

SIDE VIEW

I /

17/8"

(4.8 cm)

_ 1" (2.54 cm)

, I

23" C

(58.4cm)

2".11/2"

(5 cm - 3.8 cm)

A. Drain hose

B. 1" (2.54 cm) air gap

C. PVC drain reducer

D. Center of drain should be 23" (58.4 cm) from front of door,

with or without the 3/4"(1.91 cm) panel on the door. The

drain should also be centered from left to right (7_/'

[18.56 cm] from either side of the ice maker).

Drain Pump System (on some models)

Connect the ice maker drain to your drain in accordance with the

International Plumbing Code and any local codes and

ordinances.

NOTE: If the drain hose becomes twisted and water cannot

drain, your ice maker will not work.

Connecting the Drain

After ensuring that the drain system is adequate, follow these

steps to properly place the ice maker:

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

Excessive Weight Hazard

Use two or more people to move and install ice maker.

Failure to do so can result in back or other injury.

2. Style 1 - For gravity drain system, push the ice maker into

position so that the ice maker drain tube is positioned over

the PVC drain reducer. See "Gravity Drain System" earlier in

this section. Style 2 - For drain pump system connect the

drain pump outlet hose to the drain. See "Drain Pump

System" earlier in this section.

3. Recheck the ice maker to be sure that it is level. See

"Leveling."

4. If it is required by your local sanitation code, seal the cabinet

to the floor with an approved caulking compound after all

water and electrical connections have been made.

ce Maker Doo

Tools needed:

Gather the required tools and parts before starting installation.

• 5/le"wrench • Flat putty knife

• 1/4"wrench • Phillips screwdriver

Hinge pin 5J16" Hex-head hinge screw

Handlescrew

End Cap screw

Remove Door

1. Unplug ice maker or disconnect power.

2. Remove the handle screws and handle (on some models).

Keep the parts together and set them aside.

3. Remove the hinge pin from the top hinge.

4. Remove the door from the hinges and screw the top hinge pin

back into the top hinge.

5. Reverse the door end caps as follows:

• Remove the screw and end cap from the top corner.

Move it diagonally to the opposite side's bottom corner,

keeping the straight side of the end cap facing the front of

the ice maker.

• Remove the screw and end cap from the bottom corner.

Move it diagonally to the opposite side's top corner,

keeping the straight side of the end cap facing the front of

the ice maker.

A B

D C

C D

B A

A. Top Corner Open (no end cap)

B. Beginning Top Corner End Cap

C. Beginning Bottom Corner End Cap

D. Bottom Corner Open (no end cap)

6. Set the door aside.

Reverse Hinges

1. Unscrew and remove the top hinge. Replace the screws in

the empty hinge holes.

2. Remove the screws from the bottom of the opposite side of

the ice maker cabinet. Turn the top hinge upside down so

that the hinge pin points up. Place the hinge on the bottom

opposite side of the ice maker and tighten screws.

3. Remove the plastic hinge pin sleeve from the "old" bottom

hinge and replace it on the new bottom hinge pin.

4. Remove the "old" bottom hinge screws and hinge. Replace

the screws in the empty hinge holes.

5. Remove the screws from the top of the opposite side of the

ice maker cabinet. Turn the hinge upside down so that the

hinge pin points down. Place the hinge on the top opposite

side of the ice maker and tighten the screws.

6. Remove the top hinge pin.

Replace Door

1. Place plastic hinge pin sleeve in the top hinge hole on the

door. Align the door with the top hinge hole and replace the

top hinge pin.

2. Replace the handle and handle screws.

Top Hinge

A. Hinge pin C. Hinge

B. Hinge pin sleeve D. Hex-head hinge screw

Bottom Hinge

T:y;_,,_,A

A. Hex-head hinge screw C. Hinge

B. Hinge pin sleeve D. Hinge pin

Reverse Door Catch

1. Remove the hole plugs from the opposite side of the door

and set aside.

2. Remove the screws from the magnetic door catch and

replace it on the opposite side of the door.

3. Push the hole plugs into place on the opposite side of the

door.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

4. Plug into a grounded 3 prong outlet.

Nou"ma Sounds

Your new ice maker may make sounds that are not familiar to

you. Because the sounds are new to you, you might be

concerned about them. Most of the new sounds are normal. Hard

surfaces such as floors, walls and cabinets can make the sounds

seem louder than they actually are. The following describes the

kinds of sounds that might be new to you and what may be

making them.

• You will hear a buzzing sound when the water valve opens to

fill the water reservoir for each cycle.

• Rattling noises may come from the flow of the refrigerant or

the water line. Items stored on top of the ice maker can also

make noises.

• The high-efficiency compressor may make a pulsating or high

pitched sound.

Water running over the evaporator plate may make a

splashing sound.

Water running from the evaporator plate to the water reservoir

may make a splashing sound.

As each cycle ends, you may hear a gurgling sound due to

the refrigerant flowing in your ice maker.

You may hear air being forced over the condenser by the

condenser fan.

During the harvest cycle, you may hear a "thud" when the ice

sheet slides from the evaporator onto the cutter grid.

When you first start the ice maker, you may hear water

running continuously. The ice maker is programmed to run a

rinse cycle before it begins to make ice.

ICE MAKER USE

ce Ma s

When you first start your ice maker, the water pan will fill and the

system will rinse itself before starting to make ice. The rinsing

process takes about 5 minutes.

Under normal operating conditions, the ice maker will cycle at

preset temperatures. The ice level sensor located in the ice

storage bin will monitor the ice levels.

IMPORTANT:

• If the water supply to the ice maker is turned off, be sure to

set the ice maker control to OFR

• The ice maker is designed to make clear ice from the majority

of water sources on a daily basis. If your results are

unsatisfactory, your water may need to be filtered or treated.

The Ice Making Process

1. Water is constantly circulated over a freezing plate. As the

water freezes into ice, the minerals in the water are rejected.

This produces a sheet of ice with a low mineral content.

2. When the desired thickness is reached, the ice sheet is

released and slides onto a cutter grid. The grid divides the

sheet into individual cubes.

The water containing the rejected minerals is drained after

each freezing cycle.

Fresh water enters the machine for the next ice making cycle.

Cubes fall into the storage bin. When the bin is full, the ice

maker shuts off automatically and restarts when more ice is

needed. The ice bin is not refrigerated, and some melting will

occur. The amount of melting varies with room temperature.

NOTE: As the room and water temperatures vary, so will the

amount of ice produced and stored. This means that higher

operating temperatures result in reduced ice production.

1. To start ice production, press ON.

2. To stop ice maker operation, press and hold OFR

CallService Ice Maker Status

® ® ® ®

SS&_ SS&_ SS&V_ SS&_

NOTES:

• Pressing the ON/OFF switch does not shut off power to

the ice maker.

• Allow 24 hours to produce the first batch of ice. Discard

the first batch produced.

Acceler Ice Mode

To start the Accler Ice production cycle, press the Acceler Ice

button while the ice maker is on. The ice maker will then produce

a greater amount of ice in a 24-hour period. This cycle should be

selected when you have an upcoming need for a larger amount of

ice and the ice bin is low or empty.

Cleaning Needed Status Light

The Cleaning Needed Status light will help you know when it is

time to clean your ice maker. The light will change from green to

yellow. This tells you it is almost time to clean your ice maker. It is

recommended that you clean the ice maker when the status light

changes to red OR ice production decreases significantly. To

clean your ice maker, see "Ice Maker System" in the "Cleaning"

section.

Service Light

The service light indicates when service is needed. If the service

light turns on, turn the ice maker off and back on. If the service

light turns on again, call for service.

ICE MAKER CARE

The ice making system and the air cooled condenser need to be

cleaned regularly for the ice maker to operate at peak efficiency

and to avoid premature failure of system components. See the

"Ice Maker System" and the "Condenser" sections.

Exterior Surfaces

Wash the exterior enamel surfaces and gaskets with warm water

and mild soap or detergent. Wipe and dry. Regular use of a good

household appliance cleaner and wax will help maintain the

finish. Do not use abrasive cleaners on enamel surfaces as they

may scratch the finish.

For products with a stainless steel exterior, use a clean sponge or

soft cloth and a mild detergent in warm water. Do not use

abrasive or harsh cleaners. Do not use chlorine bleach on

stainless steel surfaces.

Ice Maker System

Minerals that are removed from water during the freezing cycle

will eventually form a hard scaly deposit in the water system.

Cleaning the system regularly helps remove the mineral scale

buildup. How often you need to clean the system depends upon

how hard your water is. With hard water of 15 to 20 grains/gal.

(4 to 5 grains/liter), you may need to clean the system as often as

every 6 months.

NOTE: Use one 16 oz (473 mL) bottle of approved ice maker

cleaner. To purchase cleaner please call 1-800-4-MY-HOME e.

1. Push the selector switch to OFE

2. Wait 5 to 10 minutes for the ice to fall into the storage bin.

Remove all ice from the storage bin.

3. Unscrew the drain cap from the bottom of the water pan

located inside the storage bin as shown. Allow the water to

drain completely.

4. Replace the drain cap securely on the water pan. If the drain

cap is loose, water will empty from the water pan and you will

have either thin ice or no ice.

5. Read and follow all handling information on the cleaner bottle

before completing the steps below. Use one 16 oz (473 mL)

bottle of approved ice maker cleaner.

6. Pour one bottle of solution into the water pan. Fill the bottle

twice with tap water and pour it into the water pan.

B--

i IX',, .....P \ -J

_ ..........._ ................A

........ _ ............................g

A. Water pan

B. Water pan thumb screws

C. Drain cap

7. Press and hold the CLEAN button. See "Using the Controls."

The light will blink, indicating that the cleaning cycle is in

process. When the indicator light turns green (approximately

70 minutes), the cleaning cycle is complete. During the

cleaning cycle, the system will both clean and rinse itself.

8. After the cleaning cycle is complete, remove the drain cap

from the water pan. Look for any cleaning solution left in the

water pan. If cleaning solution drains from the water pan, you

should run the clean cycle again. Be sure to replace the drain

cap securely on the water pan. If the drain cap is loose, water

will empty from the water pan and you will have either thin ice

or no ice.

NOTE: Severe scale buildup may require repeated cleaning with

a fresh quantity of cleaning solution.

9. Press the ON button to resume ice production.

Condenser

A dirty or clogged condenser:

• Obstructs proper airflow.

• Reduces ice making capacity.

• Causes higher than recommended operating temperatures

which may lead to component failure.

Electrical Shock Hazard

Disconnect power before cleaning.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

Unplug ice maker or disconnect power.

Remove the two screws in the lower access panel and the

two screws from the base grille area of the front panel

support.

Pull the bottom forward and then pull down to remove the

lower access )anel.

4. Remove dirt and lint from the condenser fins and the unit

compartment with a brush attachment on a vacuum cleaner.

5. Replace the lower access panel using the four screws.

6. Plug in ice maker or reconnect power.

Interior Components

1. Unplug ice maker or disconnect power.

2. Open the storage bin door and remove any ice that is in the

bin.

3. Remove the drain cap from the water pan and drain

thoroughly. Replace the drain cap securely on the water pan.

If the drain cap is loose, water will empty from the water pan,

and you will have either thin ice or no ice.

4. Remove the two screws that hold the cutter grid cover in

place and remove the cutter grid cover.

5. Unplug the wiring harness from the left side of the cutter grid.

A. Cutter grid cover

B. Screws

6. Unplug the ice level sensor from the right side of the cutter

grid. Pull the ice level sensor down and forward away from

the cutter grid.

7. Remove the right-hand and left-hand screws. Lift the cutter

grid up and out.

NOTE: Make sure the plastic spacer from the right-hand side

of the cutter grid bracket stays with the cutter grid.

A. Cutter grid Harness

B. Scre w

C. Cutter grid

D. Ice level sensor harness

E. Plastic spacer

F. Screw

Remove the two thumb screws that hold the water pan in

place. Push down with one hand on the front of the pan while

pulling forward on the bottom back side.

g ..........

[ -t\\ 7" \ -J

l\\ .............,-_.....................A

A. Water pan

B. Water pan thumb screws

C. Drain cap

Remove, clean and replace the ice scoop and ice scoop

holder.

• After removing the ice scoop, remove the holder by

removing the two thumb screws.

• Wash the ice scoop holder along with the other interior

components using the following instructions.

• Replace the ice scoop holder by replacing the thumb

screws.

A. Thumb screw

B. Ice scoop holder

10. Wash the interior components (cutter grid, exterior of hoses,

and water pan) and the storage bin, door gasket, ice scoop,

and ice scoop holder with mild soap or detergent and warm

water. Rinse in clean water. Then clean the same parts with a

solution of 1 tbs (15 mL) of household bleach in 1 gal. (3.8 L)

warm water. Rinse again thoroughly in clean water.

NOTE: Do not remove hoses. Do not wash plastic parts in

dishwasher. They cannot withstand temperatures above

145°F (63°C).

11. Replace water pan by pushing back on the bottom with one

hand while pushing up and back on the top. Secure the water

pan by replacing both screws.

12. Check the following:

• Drain cap from the water pan is securely in place. If the

drain cap is loose, water will empty from the water pan,

and you will have either thin ice or no ice.

• Hose from water pan is inserted into storage bin drain

opening.

13. Slide the cutter grid back into place and secure it by

replacing the right-hand screw and plastic spacer. Then

tighten the left-hand screw. Reconnect the cutter grid

harness and the ice level sensor harness.

14. Replace the cutter grid cover and the two screws.

15. Plug in ice maker and reconnect power.

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

To shut down the ice maker:

1. Unplug ice maker or disconnect power.

2. Remove all ice from storage bin.

3. Shut off the water supply.

4. Remove the two screws in the lower access panel and the

two screws from the base grille area of the front panel

support. Pull forward to remove the lower access panel.

5. Disconnect the inlet and outlet lines to water valve. Allow

these lines to drain and then reconnect to the valve.

6. Replace lower access panel and screws.

7. Drain water from water pan by removing the drain cap.

8. If the room temperature will drop below 32°F (0°C), water

must be removed from the drain line.

For ice makers with a drain pump installed:

• Plug in ice maker or reconnect power.

• Turn ice maker off and remove all remaining ice from ice

bin.

• Pour 1 qt (0.95 L) of water into the ice bin near the drain

and let the unit stand for approximately 5 minutes. This

will allow the water in the bin to drain into the drain pump

so that the pump will remove the remaining water from

the ice bin and the drain pump.

• Unplug ice maker or disconnect power.

9. Before using again, clean the ice maker and storage bin.

10. Plug into a grounded 3 prong outlet.

NOTE: All components of the ice maker are permanently

lubricated at the factory. They should not require any additional

oiling throughout the normal life of the machine.

TROUBLESHOOTING

Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.

Your ice maker will not operate

Is there ice between the evaporator plate and the cutting

grid? Check that the ice maker is level. See "Leveling." If the

ice maker is level, and the problem persists, run a cleaning

cycle. See "Cleaning."

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

Is the power cord plugged in? Plug intoa grounded 3 prong

outlet.

Is the control set to ON? Be sure that the control is set to

ON.

Has a household fuse blown, or has a circuit breaker

tripped? Replace the fuse or reset the circuit breaker. If the

problem continues, call an electrician.

Is the room temperature cooler than normal? Room

temperature must be above 55°F (13°C). Otherwise, bin

thermostat may sense cold room temperature and shut off

even though the bin is not full of ice. Also, unit may not restart

once it does shut off.

• Does the green light come on when the Clean button is

pushed? The ice maker is receiving power but may need

cleaning. See "Cleaning."

• Does the ice maker have a drain pump? Ifthere was a large

amount of water added to the ice maker, wait a few minutes

for the drain pump to clear. If there is still water in the bin,

check to see whether the drain hose is kinked.

Ice maker seems noisy

• Is water being circulated through the ice maker? This is

normal operation. Water is added once per ice-making cycle.

• Is the water in the reservoir overflowing? This is normal.

This overflow helps to purge minerals that were removed from

the water during the ice making process.

• Is there a "whooshing" sound? Check the following things:

• Make sure that the water supply is hooked up and turned

on.

• Make sure that the drain cap is tight and the water drain

pan pump is securely attached to the water pan.

Ice maker runs but produces no ice

• Is the control set to ON? Be sure that the control isset to

ON.

• Is the water supply connected? Make sure the water supply

is properly connected and turned on.

• Is the drain cap securely in place? If the drain cap is loose,

water will empty from the water pan, and you will have either

thin ice or no ice. Tighten the drain cap.

• Is there debris in the drain tube? Clean the drain tube.

• Is there a kink in the drain line? Be sure that there are no

kinks in the line.

• Is the service light flashing on and off continually? Call for

service.

ice maker runs but produces very little ice

• Is the room temperature hotter than normal? Room

temperatures of more than 90°F (32°C) will normally reduce

ice production.

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

• Is the condenser dirty? Dirt or lint may be blocking the

airflow through the condenser. See "Condenser" in the

"Cleaning" section.

• Is there scale buildup in the ice maker? If there is white

scale buildup inthe ice maker's water or freezing system, you

should clean the ice maker. See "Interior Components" in the

"Cleaning" section.

• Is the drain cap securely in place? If the drain cap is loose,

water will empty from the water pan, and you will have either

thin ice or no ice. Tighten the drain cap if it is loose.

Grid is not cutting ice sheets

• Is the cutter grid securely in place? Check the cutter grid

harness plug to make sure the connection is intact. See

"Interior Components" section of "Cleaning" for instructions

on cutter grid removal.

Off taste, odor or gray color in the ice

• Is there unusually high mineral content in the water

supply? The water may need to be filtered or treated.

• Is there mineral scale buildup? Clean your ice maker. See

"Ice Maker System" in the "Cleaning" section.

• Are there food items stored in the ice bin? Do not store any

foods in the ice bin.

Were all the packaging materials removed? Make sure that

all packaging materials were removed at the time of

installation.

Thin, soft or clumps of ice

• Is there unusually high mineral content in the water

supply? The water may need to be filtered or treated.

• Is there mineral scale buildup? Clean your ice maker. See

"Ice Maker System" in the "Cleaning" section.

• Are there clumps of ice in the bin? If ice isnot used

regularly it will melt and form clumps. Break the clumps with

the ice scoop provided.

P/u nbn9 P sb/ems

Excessive Weight Hazard

Use two or more people to move and install ice maker.

Failure to do so can result in back or other injury.

• Is the drain hose aligned over the drain? Move the ice

maker to align the drain. See "Connect Water Supply."

NOTE: Service technicians cannot repair plumbing problems

outside of the ice maker. Call a licensed, qualified plumber.

PROTECTION AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore ®product is designed and manufactured for years of

dependable operation. But like all products, it may require

preventive maintenance or repair from time to time. That's when

having a Master Protection Agreement can save you money and

aggravation.

The Master Protection Agreement also helps extend the life of

your new product. Here's what the Agreement* includes:

Parts and labor needed to help keep products operating

properly under normal use, not just defects. Our coverage

goes well beyond the product warranty. No deductibles, no

functional failure excluded from coverage-- real protection.

Expert service by a force of more than 10,000 authorized

Sears service technicians, which means someone you can

trust will be working on your product.

Unlimited service calls and nationwide service, as often as

you want us, whenever you want us.

"No-lemon" guarantee - replacement of your covered

product if four or more product failures occur within twelve

months.

Product replacement ifyour covered product can't be fixed.

Annual Preventive Maintenance Check at your request - no

extra charge.

Fast help by phone - we call it Rapid Resolution - phone

support from a Sears representative on all products. Think of

us as a "talking owner's manual."

Power surge protection against electrical damage due to

power fluctuations.

i/$250 Food Loss Protection annually for any food spoilage

that is the result of mechanical failure of any covered

refrigerator or freezer.

Rental reimbursement if repair of your covered product takes

longer than promised.

10% discount off the regular price of any non-covered repair

service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that

it takes for you to schedule service. You can call anytime day or

night, or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase. If you

cancel for any reason during the product warranty period, we will

provide a full refund. Or, a prorated refund anytime after the

product warranty period expires. Purchase your Master

Protection Agreement today!

Some limitations and exclusions apply. For prices and

additional information in the U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full details

call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage

door openers, water heaters, and other major home items, in the

U.S.A. or Canada call 1-800-4-MY-HOME ®.

Page is loading ...

Your Home

For expert troubleshooting and home solutions advice:

anage

www.managemyhome.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it t

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.)

Para pedir servicio de reparacidn

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

Sea/rs

1-800-361-6665 (Canada)

Au Canada pour service en frangais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

W10136158B

TM SM

® Registered Trademark / Trademark / Service Mark of Sears Brands, LLC

• TM . SM

® Marca reglstrada / Marca de comerclo / Marca de servicio de Sears Brands, LLC

® Marque deposee / Marque de commerce / SaMarque de service de Sears Brands, LLC

6/08

Printed in U.S.A.

Impreso en EE.UU.

Imprime aux E.-U.

Kenmore 10689589702 Owner's manual

Brand: Kenmore

Model: 10689589702

Type: Owner's manual

This manual is also suitable for

Download PDF

report

in other languages

français: Kenmore 10689589702 Le manuel du propriétaire
español: Kenmore 10689589702 El manual del propietario

Kenmore 10689589702 Owner's manual

This manual is also suitable for

Kenmore 10689589702 Owner's manual

in other languages

Related papers

Other documents
